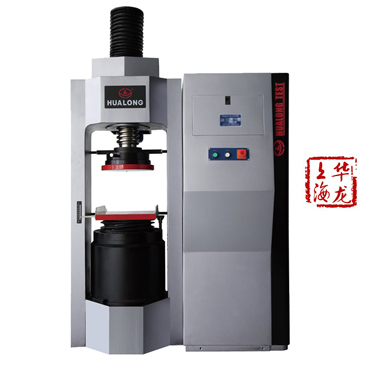

Electro-hydraulic servo pressure testing machine WHY

The test space of WHY electro-hydraulic servo pressure testing machine is electrically adjusted, which is very convenient to use. The servo control function with force closed loop enables equal load loading. The test force is not divided into the whole process, and the whole process is one resolution. The test force indication value is within ±1% of the relative error and the test range is from 1% to 100%. Electrical control and software operation meet GB/T 50081-2002 common concrete compressive strength test method, especially suitable for test sites that need to work continuously for a long time, can achieve long-term load retention, high load-holding precision, and can set complex compression The test sinks and can be configured with corresponding fixtures to meet the pressure test requirements of other standards.
WHY electro-hydraulic servo pressure testing machine introduction:
The testing machine is an electro-hydraulic servo pressure testing machine with force closed-loop control, with constant stress control and load holding function;
The load cell adopts the load sensor, which can ensure the accuracy and reliability of the test accuracy.
The imported low noise high pressure oil pump provides a quiet environment in the workplace. The hydraulic system adopts air-cooling device, which is suitable for long-term and continuous work. The series of test machines are suitable for the compressive strength test of cement, concrete and rock. With appropriate fixtures and measuring devices, it can meet the concrete tensile test and anti-folding. Test, static pressure modulus test;
This series of testing machines can be widely used in engineering quality inspection, research institutes, universities and metallurgical industries;
Applicable samples: cement, concrete (70), rock, refractory materials, etc.
