Application

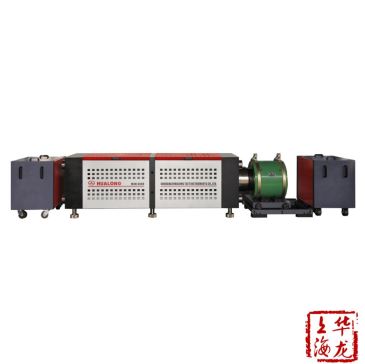

HUALONG WJM Series is mainly used for railway Bridges and water conservancy, electricity and other infrastructure construction in a steel strand anchor static load solid and low cycle load performance testing.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,etc
Model |
WJM-5000 |
WJM-6500 |
WJM-9000 |
WJM-12000 |
||
Load Capacity(KN) |
5000 |
6500 |
9000 |
12000 |
||
Accuracy class |
4%-100% |
|||||
Measuring Range Of Dispacement |
0-200mm |
|||||
Displacement Accuracy |
±1% |
|||||
Test force accuracy |
±1% |
|||||
Adjusting range of force- controlled velocity |
1Mpa/s-100Mpa/s |
|||||
Ralative error of force-controlled velocity |
±1% |
|||||
Speed Setting Accuracy |
±0.5%(±1%) |
|||||
Range Of Force Displacement Control |
0.3%-100% F.S |
|||||
Accuracy Of Force Displacement Control |
Set value <10%F.S ±1% Set value ≥10%F.S ±0.5%
|
|||||
Repeatability |
±0.5% |
|||||
Relative resolution |
±0.5% |
|||||
Piston Stroke |
200mm |
|||||
Tensile Space |
3600mm |
|||||
Dimensions(mm) |
3600*700*900 |
3600*750*1000 |
3600*850*1100 |
3600*1000*1250 |
||
Gross Weight(kg) |
3400 |
4200 |
5600 |
7800 |
