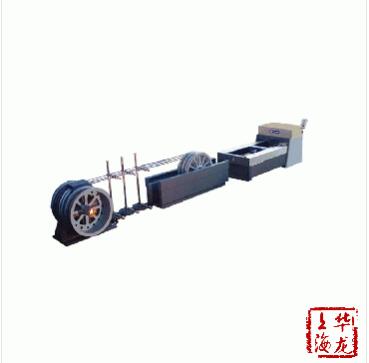

Cable flattening test machine

1.2. Optical cable crushing load measurement range: 0.1KN ~ 10KN;
1.3. Pressure seat and indenter: section 100mm × 100mm, hardness HB240 ~ 280;
1.4. Relative error of test force indication value: ±0.5%;
1.5. Test force resolution: 200000 yards;
1.6. Test force rate control adjustment range: 0.005-10%F.S/s;
1.7. Relative error of deformation indication: ±0.5%;
1.8. Strain rate control adjustment range: 0.005-10% F.S/s;
1.9. Relative error of displacement indication: ±0.3%;
1.10. Displacement resolution: 0.000025mm;
1.11. Displacement rate control adjustment range: 0.001-500mm/min;
1.12. Relative error of displacement rate control: ±0.5%;
1.13. Force, deformation, displacement control range: 0.3%-100% F.S;
1.14. Cable strain measurement: 1000mm standard distance cable extension measuring device detection resolution is better than 10μm, the accuracy is better than the indication value ± 0.5%;
1.15. Stretch maximum stroke: 800 ~ 1100mm; (2) Cable twist test machine. Torsion length: 1000mm;
Torsion angle: ±90°, ±180°, ±360° arbitrarily set; Torsing speed: 5~30 times/min (speed adjustable) Torsing times: 1~9999 times, can be set arbitrarily. (3) Repeated bending of optical cable: bending speed: 10~30 times/min (adjustable speed); repeated bending arm length ≥1000mm; bending angle: ±90°; bending mandrel radius: R50, R100mm, R150mm, according to cable test Require replacement by yourself. (4) Optical cable impact testing machine: Impact speed: 10~30 times/min (speed adjustable); impact height: 1000mm (national standard); the number of impacts can be set arbitrarily. (5) Optical cable test: moving speed: trolley movement 250~350mm/s; winding stroke: 1000mm, automatic control of round trip; pulley assembly: φ200mm, φ250mm, φ300mm each, 4, according to cable test requirements (6) Optical cable seepage test machine: head height 1000mm
