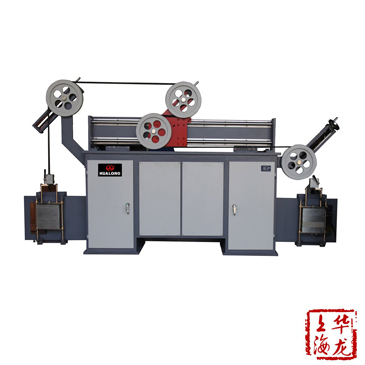

Cable winding test machine

The cable winding test machine is often used for winding and twisting tests of wire and cable such as aluminum wire, steel wire, steel rod, steel core aluminum stranded wire. It complies with GB/T 4909.4-2009 "Bare Wire Test Method. Torsion Test" and GB/T 4909.7-2009 "Bare Wire Test Method. Winding Test" standard requirements. For aluminum wire, steel wire, copper rod, winding and torsion tests are required. It is an indispensable testing tool for steel core aluminum stranded wire manufacturers.
1. Working width of crimping plate: 200mm
2, the effective working length of the mandrel: 70mm
3, winding speed: 1 ring -70 circles / min (can be adjusted)
4, core rod range:
Φ1.24mm, φ2.25mm, φ2.75mm, φ3mm,
Φ3.5mm, φ3.72mm, φ4.25mm, φ4.75mm,
Φ6.75mm, φ11.0mm, φ12mm, Φ14.0mm,
Φ17.0mm, Φ19.0mm,
5, winding range:
Aluminum wire: 芯3mm-6mm core rod, Ф3mm or less is recommended to be manually wound.
Steel wire: Ф4mm or less
6, twist weight weight: 5 × 5Kg
7, reverse counting range: 999999
8, motor rated power: 0.185kw
9, rated voltage: 220V, 50HZ
10, the size of the approximate: about 1400 × 500 × 800mm
