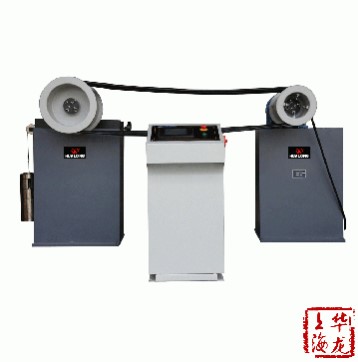

PLC control cable winding test machine

Winding speed: 12r/min;
Number of winding turns: 2 to 20 turns can be set arbitrarily, forward n (set number of turns) circle, reverse n (set number of turns) circle is 1 time;
Winding times: 1 to 9999 times, can be set arbitrarily;

The number of winding forward and reverse turns can be set and automatically controlled according to the requirements of the cable test, and the test cycle is automatically recorded. The number of winding cycles can be arbitrarily set and automatically recorded within 9999 times, and the test is automatically terminated until the set number of times.

Model	GJR-300
Mandrel diameter (Drive)	D200, D300
Mandrel diameter (Slave)	D300
Positioning range of slave mandrel	0-250
Max. bending cycles	1-9999Cycles
Winding frequency	2-20Cycles/min (Clockwise / Anticlockwise)
Winding velocity	12r/min
Mass of weights for applying tension	Weight bracket: 5kg 1 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment.
Dimensions (LWH)	Working frame:10007201300mm Control console:400300 800mm
Power	3-phase 4-wire, 50Hz, 1kW.
