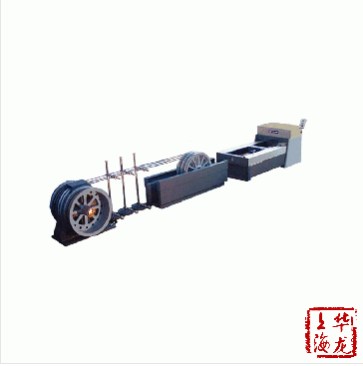

Cable tension flattening test machine

The microcomputer controls the cable stretching and flattening test machine, and the cable is subjected to a force length of 10 to 150 m. The replacement fixture can realize all functions of the microcomputer-controlled electronic universal testing machine, and can perform tests, analysis and research on stretching, compression, bending, shearing, peeling, tearing, low cycle, etc. of metal, non-metal materials and finished products. quality control.
The cable tensioning and flattening test, the computer control system can be connected with CD300, CD400, CD500, S18, PK2800 to provide the cable strain curve and fiber strain curve of the cable stretching process.
The total number of points, the force point and the maintenance time of the afterburner can be set arbitrarily.
The cable twisting, repeated bending, impact, winding, winding test machine are all controlled by PLC, can work alone, or can be controlled by the main control computer.
It can output Chinese and English reports and strain curves of cable stretching, flattening, torsion, repeated bending, impact, winding and test.
It is the first domestic direct measurement device for the tensile strain of microcomputer-controlled cable, with high precision, convenient operation, stable and reliable.
The above-mentioned optical cable mechanical performance testing machine combines the essence of similar products at home and abroad, IEC794-1 (fourth edition) "General Specification for Optical Cables", National Military Standard GJB915A-97 "Fiber Optics Test Method" and American EIA/TIA-455-FOTP The series of standards related to optical cable test procedures, careful system development and design, fully meet the requirements of optical cable testing, and reach the level of international standards.
Cable chuck assembly: 2 fixed rotating chucks and 3 mobile chucks mounted on the trolley to form a cable chuck assembly capable of stretching ≥ 150m length;
Test properties: optical cable fixed point, constant load tensile, flattening test or destructive test;
The replacement fixture can realize all functions of the computer-controlled electronic universal testing machine, which can meet the test requirements of optical cables and cable materials such as steel wire, steel strip, aluminum strip and plastic.
This machine fully complies with GB/T2611 "General technical requirements for testing machines" and GB/T16491 "Electronic universal testing machine" standards. The accuracy of the whole machine can be verified by the local legal metrological verification department, and the certificate and certification of the measuring instrument are issued.
Execution test method:
IEEE 1138¬—2009 Construction Standard for Composite Optical Fiber Overhead Ground Wire for Electric Power Lines
Optical fibre cables - Part 4: Sectional specification. Transmission line overhead cable
GB/T 7424.4—2003 Optical cable Part 4: Sectional specification Optical composite ground wire
JB/T8999—1999 Optical fiber composite overhead ground wire (OPGW)
DL/T832—2003 Technical requirements for optical fiber composite overhead ground wire.
DL/T788-2001 full medium self-supporting optical cable
GB/T1179-2008 round wire concentric stranded overhead conductor
