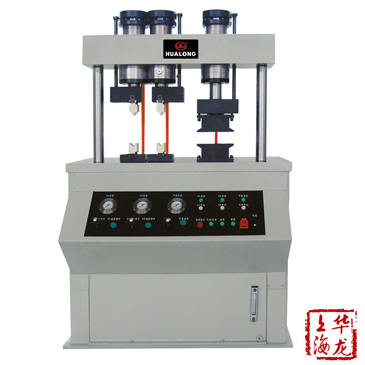

Program-controlled three-station V-bend testing machine

This machine meets the bending test of the metal material of GB/T 232-1999 "Metal Material Bending Test Method" to determine its bending plastic deformation ability. However, it is not suitable for bending tests of metal pipes and metal welded joints.
Mainly for the bending test of the wide and thick plates produced by the Iron and Steel Group Company. Wide and thick plate types include pipeline steel plates, shipbuilding steel plates, structural steel plates, boiler steel plates, container steel plates, atmospheric corrosion resistant plates, and construction machinery plates.
Main Specifications
Vertical maximum load: 1000KN, horizontal maximum load: 2000KN
Vertical cylinder piston stroke: 350mm, horizontal piston stroke: 200mm;
Displacement range: horizontal 200mm, vertical 350mm;
Displacement indication accuracy: ±0.5%
Vertical piston speed: 300mm/min, horizontal piston speed: 120mm/min
Maximum span of bending: 200×2mm
With safety cover
Emergency stop protection
With the windows interface, you can print displacement-time curves and so on.
Free software upgrades for life. The scope of the upgrade is limited to the scope of product implementation standards, and hardware costs are charged.
Alternate function: In case of host computer crash or virus interference, the test machine only has strong power
In the case of the test, the test can also be carried out. This feature is a selection feature and is not configured for regular products.
Core diameter basic specifications (mm): 5, 10, 12, 14, 15, 16, 20, 24, 25, 28, 30, 40,
48, 50, 54, 56, 58, 60, 63, 66, 69, 72, 75, 80, 90, 100, 130. A total of 27 files;
The maximum width of the indenter is 120.
Mainframe dimensions (mm): 2360×840×2500
Oil source dimensions (mm): 1100 × 1050 × 1200
Control cabinet dimensions (mm): 1160 × 860 × 950
Power supply: voltage 380V±10%, 220V±10% 50Hz power 15kW
Hydraulic oil: use GB443-84 YBN68 anti-wear hydraulic oil, the oil injection capacity is about 300 liters
Equipment weight: about 10 tons
