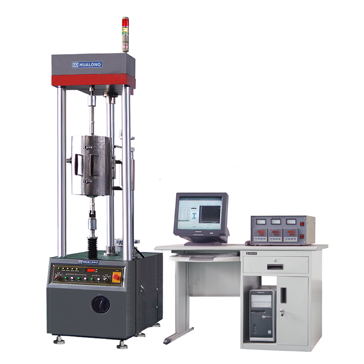

•Motorized draw-head assembly automatically compensates for specimen elongation and keeps loading bar with excellent load accuracy of +/- 0.5% guaranteed.
•Adjustable vibration isolator mounts Accessories available for a wide variety of tests.
•A completely enclosed robust base unit supports the lower crosshead and test actuator. This base unit houses an integral spur gear box/HTD toothed belt drive assembly, printed circuit motor & tachometer.
•Both room temperature and elevated temperature systems are available.
•Furnace and chambers available with temperature ranges from 200 ℃ to 1000℃ in common air Environments, and 600 ℃ to 2200℃ available in vacuum environment.
•Numerous high temperature pull rods, specimen holders, furnace systems and extensometers available for creep and stress Relaxation applications. Many of which are also adaptable to hot tensile testing applications on universal testing machines.
•Numerous high temperature pull rods, specimen holders, furnace systems and extensometers available for creep and stress Relaxation applications. Many of which are also adaptable to hot tensile testing applications on universal testing machines.
Technical Specifications
Load frame
|
||||||
Model |
RCW-10/20 |
RCW-30 |
RCW-50 |
RCW-100 |
RCW-300 |
RCW-500 |
Load capacity |
10kN/20kN |
30kN |
30kN |
50kN |
300kN |
500kN |
Load accuracy |
≤±0.5% of indicating |
|||||
Deformation accuracy |
<±0.5% of reading |
|||||
Lower loading bar travel |
200mm |
|||||
Loading Speed |
0.01-50mm/min |
|||||
Load Frame Dimensions (cm) |
210*71*54 |
220*71*54 |
239*73*54 |
320*95*74 |
||
Load Frame Weight (kg) |
400 |
400 |
500 |
1000 |
1200 |
Furnace |
|
Temperature range |
200ª~1000ª |
Medial temperature zone range |
150mm |
Temperature deviation |
< 3ª |
Surface temperature of furnace |
≤50ª |
Service life |
≥7500H (under 1000ª) |
Maximum power consumption |
2kW |
Furnace inner dimensions |
(Inner diameter × length)(mm) Φ80×340 |
Furnace out dimensions |
(out diameter × length)(mm)Φ320×440 |
±0.5 % of reading to 1/100 of load weighing system capacity meets or exceeds the requirements of the following standards: ISO 7500-1, EN 10002-2, ASTM E4 and JIS B7721. ±0.5% of reading to 1/50 of full scale with most ASTM E83 class B or ISO 9513 class 0.5 extensometers meets or exceeds ASTM E83, ISO 9513, and EN 10002-4.
|
