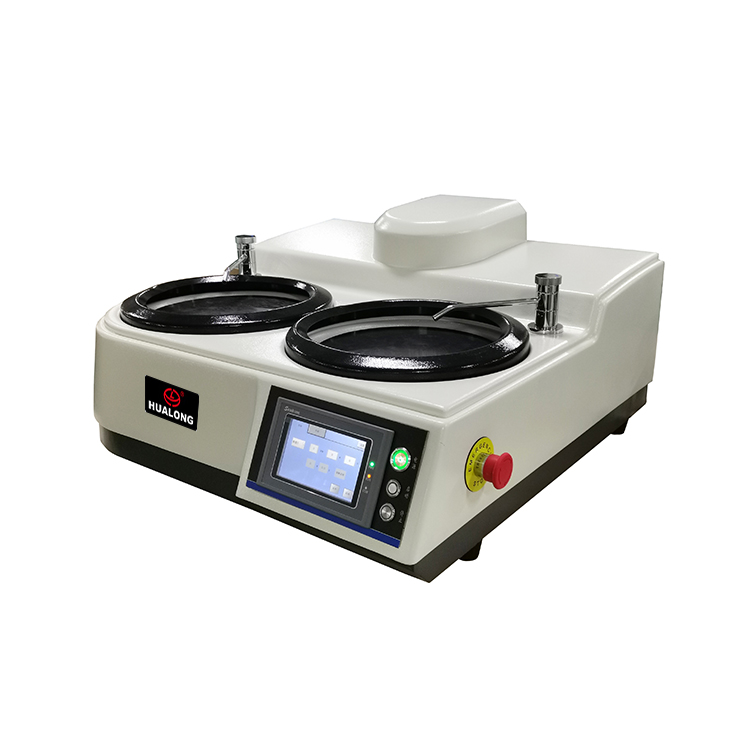

HLP-2X Advanced Metallographic Grinding & Polishing Machine

HLP-2X Advanced Metallographic Grinding & Polishing Machine
HLP-2X Advanced Metallographic Grinding & Polishing Machine
HLP-2X Advanced Metallographic Grinding & Polishing Machine
1. Product features
-PLC control: all grinding and polishing parameters, such as rotation speed, time, direction, water valve and etc., are automatically saved and easy to adjust;
-Touch screen interface: convenient grinding parameters setting, intuitive state display, simple operation;
-Four-speed manual mode;
- 8 sets of automatic modes;
-The parameters of each mode are set by the user; Stepless speed regulation can be set at each step of grinding and polishing.
-Water drop position can be rotated to adjust, water flow can be adjusted, grinding start and end, water automatically open and shut down;
-The equipment runs smoothly and has low noise;
-Can connect and control the polishing liquid dropper regulator(optional accessory).


2. Technical parameters

Item

Specifications

Working disk diameter

Standard Φ254mm (optional Φ203mm / Φ230mm)

Speed (r/min)

100-1000r/min Clock-wise and anti-clockwise rotation can be chosen

Four manual modes

V1=300r/min, V2=500r/min, V3=600r/min, V4=800r/min (adjustable)

Eight automatic modes

Eight combination of speed, operation time and rotation direction can be set up.

Motor power

0.75 kw

Power supply

Voltage: AC220V Frequency: 50Hz

Overall dimension

670 x 470 x 360 (length*width*height)

Weight

46kg
