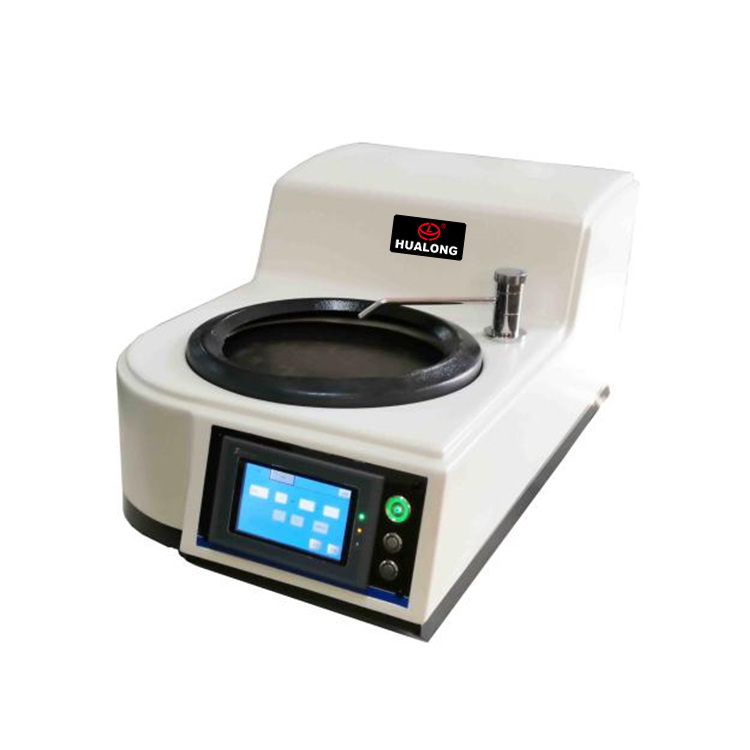

HLP-1X Advanced Metallographic Grinding & Polishing Machine

1.Product features
-PLC control: all grinding and polishing parameters, such as rotation speed, time, direction, water valve and etc., are automatically saved and easy to adjust;
-Touch screen interface: convenient setting of grinding and polishing parameters, direct display of status and simple operation;
-Four-speed manual mode;
-8 sets of automatic modes;
-The parameters of each mode can be set by the user; Stepless speed setting can be realized at every phase of grinding and polishing.
-Water drop position can be rotated to adjust, water flow can be adjusted, grinding start and end, water automatically open and shut down;
-The equipment runs smoothly and has low noise;
-Can connect and control the polishing liquid dropper regulator(optional accessory).

2. Technical parameters

Item	Specifications
Working disk diameter	Standard 254mm (Optional 203mm/230mm)
Speed (r/min)	100-1000r/min Clock-wise and anti-clockwise rotation can be chosen
Four manual modes	V1=300r/min, V2=500r/min, V3=600r/min, V4=800r/min (adjustable)
Eight automatic modes	Eight combination of speed, operation time and rotation direction can be set up.
Motor power	0.75kw
Power supply	Voltage: AC220V Frequency: 50HZ
Overall dimension	670 x 470 x 360 (lengthwidthheight)
Weight	35kg
