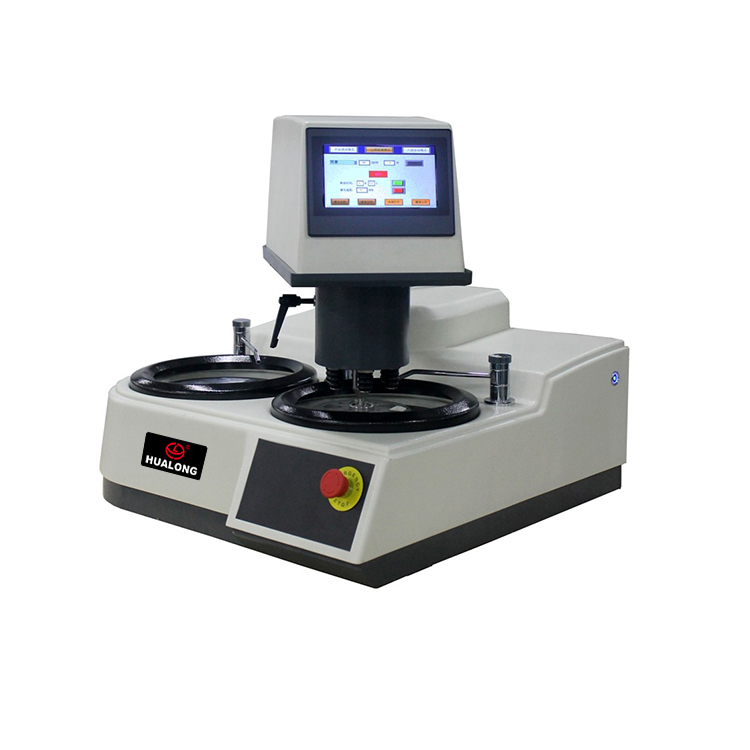

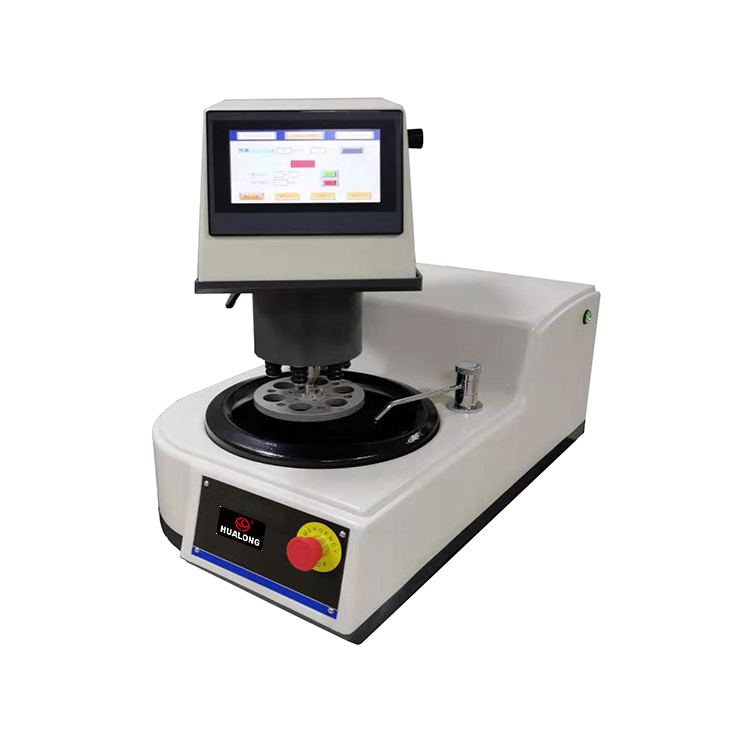

HLP-1000 &HLP-2000 Automatic Grinding-Polishing Machine

1.Product Features
-6 samples, pressurized independently.
-PLC independently controls the grinding disc and sample disc: all grinding parameters, such as speed, grinding time, rotation direction, water valve closing, etc., are automatically saved and easily invoked.
-Touch screen interface: easy to set grinding parameters, intuitive state display, simple operation.
-The rotation of grinding disc and sample disc is infinitely variable, and the rotation direction can be switched.
-PLC controls the on and off of the water and abrasive drip.

2. Technical Specifications

Item	HLP-1000	HLP-2000
Station	Single disc	Double disc
Working disc diameter	standardφ254mm（ optionalφ230mm、φ203mm）with magnetic switchboard system
Rotate speed	50-1000r/min The forward and backward rotation can be switched
Grinding head speed	30-200r/min
Manual mode	can select 30 sets of parameters, each set set and called separately
Automatic mode	30 sets of process (process), each set of process contains 10 steps of process parameters (from process 1 to process 10 automatically, each step has an independent set of parameters)
Sample holder	30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized)
Grinding head locking mode	Electromagnetic automatic lock
Working air source pressure range	More than 0.6MPa
Motor power	0.75Kw
Input voltage	AC220V，50/60Hz，2KW
Dimensions	700 x 730 x 350mm
Weight	74kg
