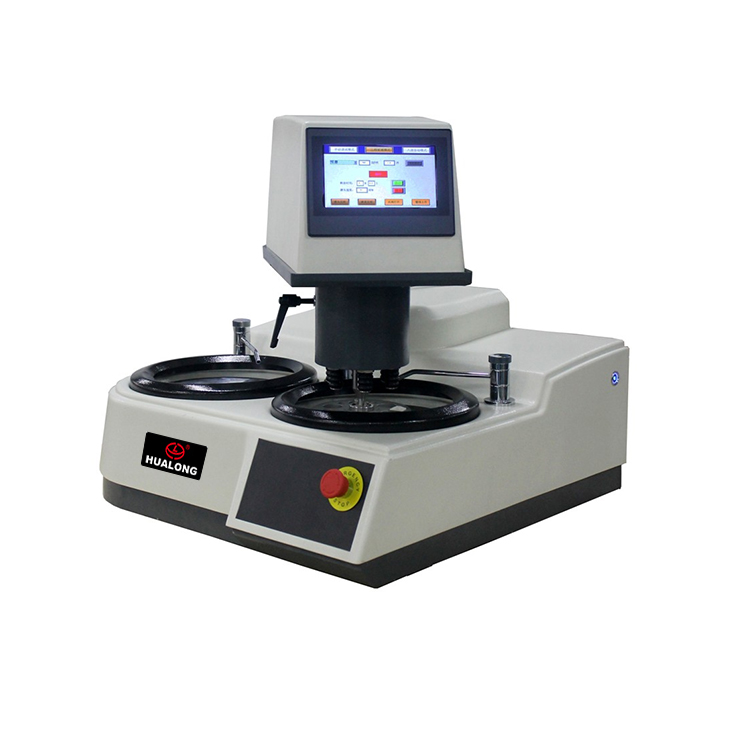

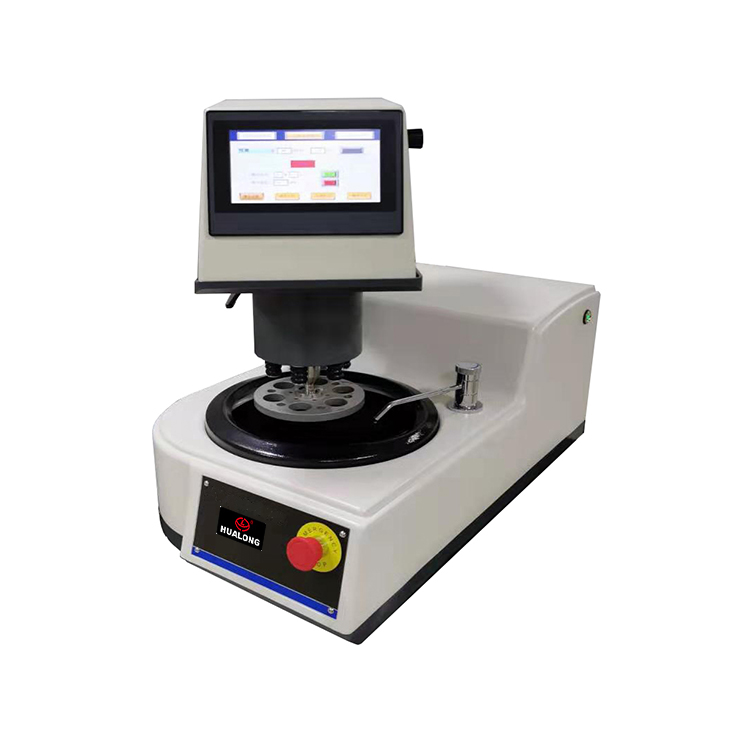

HLP-1000XP/HLP-2000XP Fully automatic (multi-point pressure & central pressure) metallographic grinding and polishing machine

1.Product features.
-Single and double grinding disc, support:
-Single sample was loaded independently
-Sample plate center loading, fixed six samples at a time, complete the whole grinding and polishing process, to make sure the surface of each sample is smooth and polished
-Polishing plate and sample plate: set and run speed, polishing time, rotating direction, water valve closing and other polishing parameters, and automatically save, easy to switch;
-Touch screen interface: easy to set grinding parameters, intuitive state display, simple operation;
-Grinding plate and sample plate rotate continuously variable speed, rotation direction can be changed;
-Three working modes:
-Automatic mode:
30 sets of processes (processes) can be set and called according to the sample materials or the habits of users, and each set of processes can contain 10 steps of process parameters (parameters of each process for a certain step of grinding or polishing process: rotation speed of grinding disc and grinding head, grinding and polishing time......)

2. Technical parameters.

Item	HLP-1000XP		HLP-2000XP
Station	Single disc		Double disc
Working disc diameter	Standard with φ254mm (optional φ230mm/φ203mm, customized φ304mm) with magnetic conversion disk system
Rotate speed	50-1000 RPM reverse rotation can be switched
Sample plate speed	30-200 RPM reverse rotation can be switched
Manual mode	You can select 30 groups of parameters, each set and invoked separately
Automatic mode	30 sets of process (process), each set of process contains 10 steps of process parameters (from process 1 to process 10 automatically, each step has an independent set of parameters)
Sample holder	30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized)
Grinding head locking mode	Electromagnetic automatic lock
Drip device (optional)	4 channel Grinding and polishing machine controls the drip operation
Working air source pressure	More than 0.6MPa
Motor power	0.75 Kw
Power supply	AC220V, 50/60Hz, 2KW
Overall dimensions	760 x 470 x 700mm	760 x 730 x 700mm
Weight	63kg	74kg
