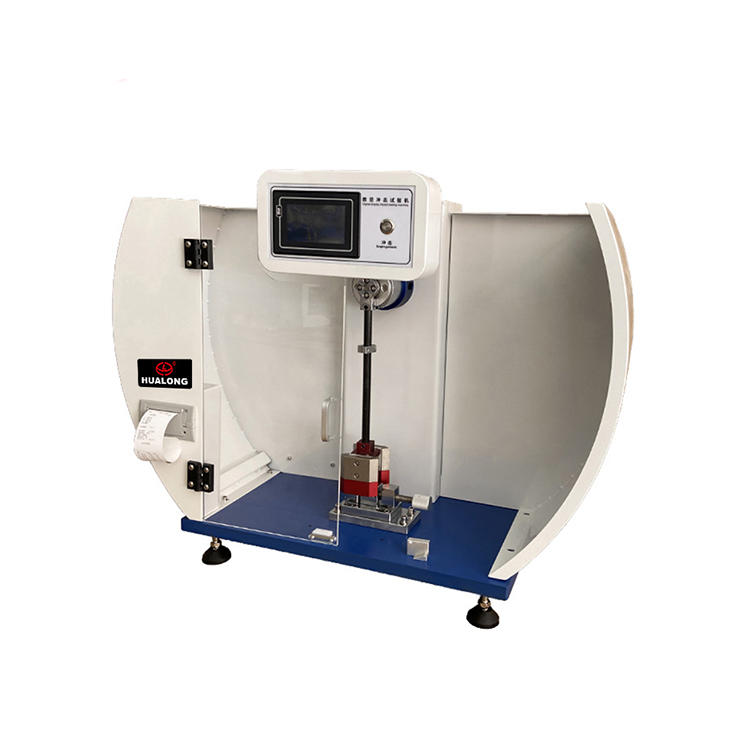

HL-5/15/25/50JCJX Touch Screen Plastic Charpy Impact Testing Machine

1. Product introduction:
The digital display simply supported beam impact tester is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stones, and electrical insulating materials. It is an ideal testing equipment for chemical industry, scientific research institutes, colleges and universities, quality inspection and other departments.

2. Specification

Display mode	Color touch screen (Chinese and English)
Angle sensor brand and accuracy	Original imported Omron encoder with accuracy to 0.01°
Accuracy of energy display	0.01J
Impact speed	2.9m/s, 3.8m/s
Pendulum energy	1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J
The distance from the center of the pendulum to the center of the sample	230mm, 395mm
Pendulum angle	150°
Jaw support spacing	40mm, 60mm, 70mm, 95mm
Supporting blade fillet radius	R=1mm
Included angle of impact blade	30°
Impact blade fillet radius	R=2mm±0.5mm
