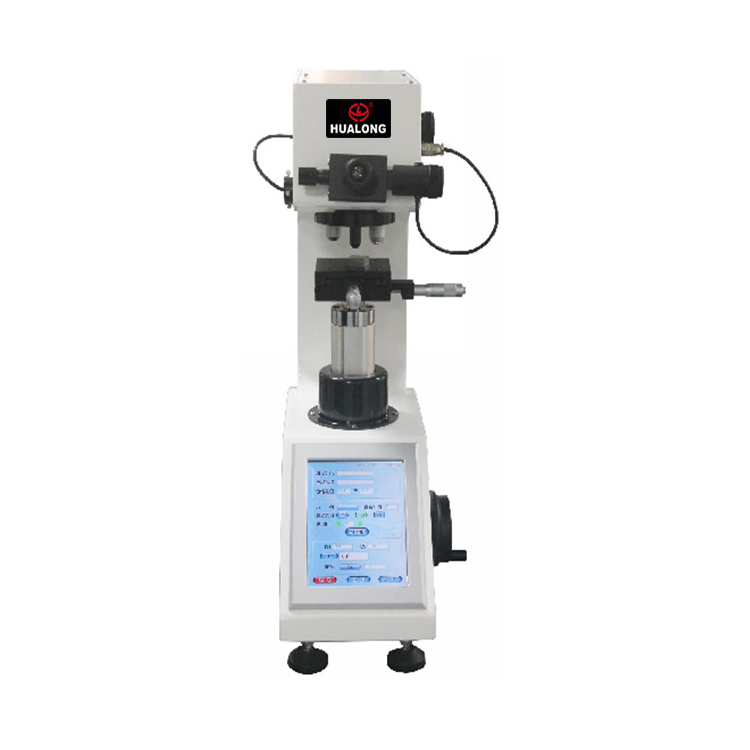

HLV-1DT Micro vickers hardness Tester

HLV-1DT Micro vickers hardness Tester
HLV-1DT Micro vickers hardness Tester
HLV-1DT Micro vickers hardness Tester

1. Product introduction

HLV-1DT The digital display touch screen microhardness tester adopts touch screen display, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel to test the hardness value, automatic calculation, automatic display and standard printer.

Optical cross guide rail guidance is adopted to ensure the guidance accuracy; The gear rack two-stage force transmission is adopted, which can realize fast and stable force transmission; High precision worm gear with high transmission ratio is adopted to ensure more precise force transmission.

Various hardness values can be converted to each other; The brightness of the light source can be adjusted infinitely;

It can be equipped with a built-in camera to make the image clearer.

It can be calibrated according to the standard hardness block or length scale to make the hardness value more accurately meet the requirements.

Eyepiece structure with digital encoder, and the touch screen directly displays the hardness value and D1 and D2 values.

Dual language setting, convenient for users to choose.

2. Technical parameters

Model

HLV-1DT

Test force

10gf (0.098N)25gf (0.245N)50gf (0.49N)100gf (0.98N)200gf (1.96N)300gf (2.94N)500gf(4.9N)1Kgf (9.8N)

Meet standard

GB/T4340.2ASTM E92

Measurement resolution

0.01µm

Data display output

8 "touch screen display reading, can store 20 test results, USB drive, optional built-in printer and RS-232 interface

Conversion scale

RockwellBrinell

Hardness test range

8~2900HV

Test force application method

Automatic loadingdwellunloading

Test microscope magnification

400X(test), 100X (test, observation)

Test force dwell time

1-99s

Maximum allowable specimen height

100mm

Distance from indenter to wall

130mm

X-Y platform

dimension100*100mm movement 25*25mm

size

540*260*650mm

weight

About 50 kg

Power supply

AC220V+5%50-60Hz


3.Operation interface

HLV-1DT Micro vickers hardness TesterHLV-1DT Micro vickers hardness Tester




4.Standard accessories

Item

Quantity

Item

Quantity

Weight shaft

1

Weight

6

Micrometer eyepiece (DHV-1000-10X)

1

Micro hardness block (high block, medium block)

Each 1

X-Y table

1

Nylon universal sole

4

level

1

Spare fuse (2A)

2

Power cord

1

Dust cover

1

Product certificate, warranty card

1

Instructions

1

Printing paper

1

Touch pen

1

screwdriver

2
