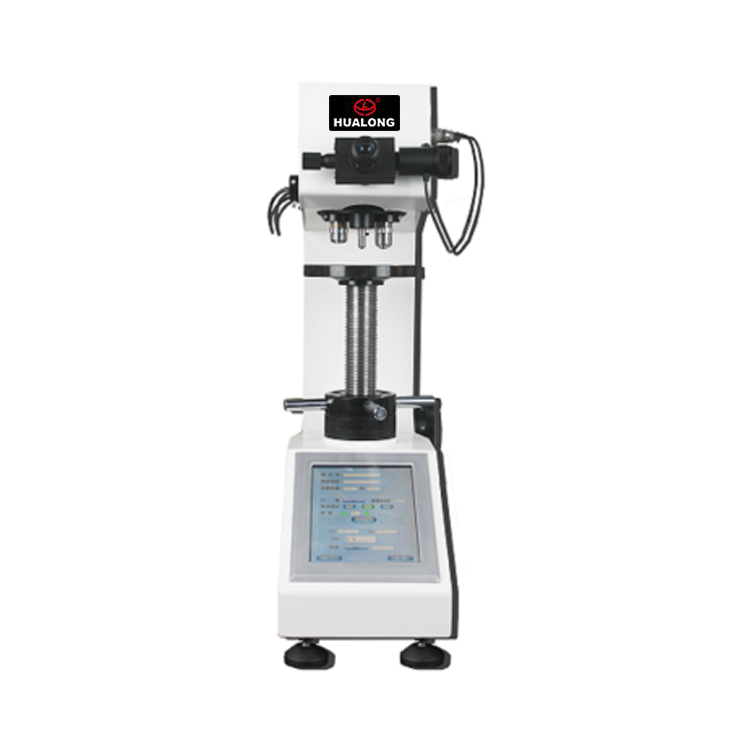

HLV-10MDT Auto Turret Vickers Hardness Tester

1. Main features

HLV-10MDT with large 8’ LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online. The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.

2. Technical Specifications

Model	HLV-10MDT
Test force	0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10Kgf(98.0N)
Meet standard	GB/T4340，ASTM E92
Measurement resolution	0.01µm
Conversion scale	Rockwell、Brinell
Hardness measuring range	8~2900HV
Test force application method	Automatic (loading, Dwelling , unloading)
Test microscope magnification	100X、200X（Both of them can be used for testing）
Test force dwell time	1~99s
Data output	8’touch screen, 20 different kinds of test result, built-in printer with RS-232 interface
Maximum height of specimen	160mm
Distance from the center to the outer wall of the indenter	135mm
Dimensions	600220700mm
Weight	About 55Kg
Power	AC220V+5%，50-60Hz

3. Standard Accessories：

Name	Quantity	Name	Quantity
10X eyepiece	1	Middle, Large, V shape testing table	Each 1
level	1	Regulating screw	4
Weight	3	Fuse cable(2A)	2
Standard block	2	Dust bag	1
Power cable	1	certificate、warranty、manual	Each 1
Print paper	1	Wrench	1
Touch pen	1
