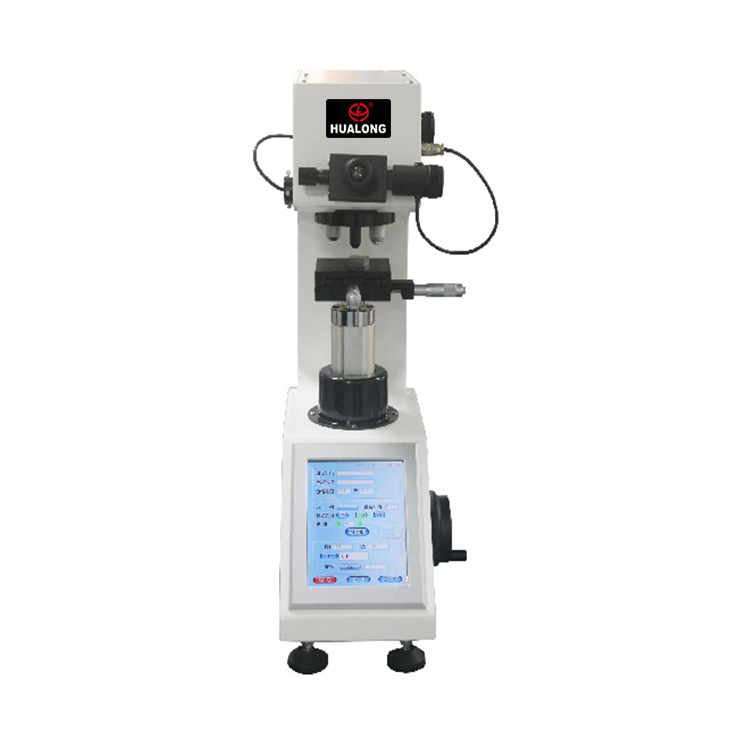

HLV-5/10/30/50DT Screen Display Vickers Hardness Tester

Main Function & Features:

This product adopts a unique and precise design on machinery, optics and light source to make the indentation imaging clearer and the measurement more accurate. It adopts a new color 7-inch touch screen display;

The tested hardness value is automatically calculated and automatically displayed.

Various hardness values can be converted mutually. LCD display readout, built-in printer and RS-232 interface

Specification:

Display model	7-inch touch screen display
Hardness values	Direct Display
Exchange Scales	HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、 HR45N、HR15K HR30T、HR45T
fest force	1Ogf (0.098N)、25gf(0.245N)、50gf(0.49N)、100gf (0.98N)、200gf (1.96N)、 300gf (2.94N)> 500gf(4.9N)、1kgf (9.8N)
Turret Type	Automatic
.oading and unloading mode	Automatic
Dwell Time	Adjustable 0 to 60 seconds
Micrometer eyepiece multiple	10X(optional 15X)
Me measurement resolution	0.25pm (drum reading)
Objective magnification	10X 40X
Fotal magnification	100X (objective) 400X(measurement)
■neasurement range	150pm
ight source	Halogen lamp (brightness adjustable)
Hardness conversation	Brinell, rockwell, surface rockwell
Max. Height of Specimen	110mm
Depth at center line	110mm
XY test table size	100X100mm Max. movement： 25*25mm
