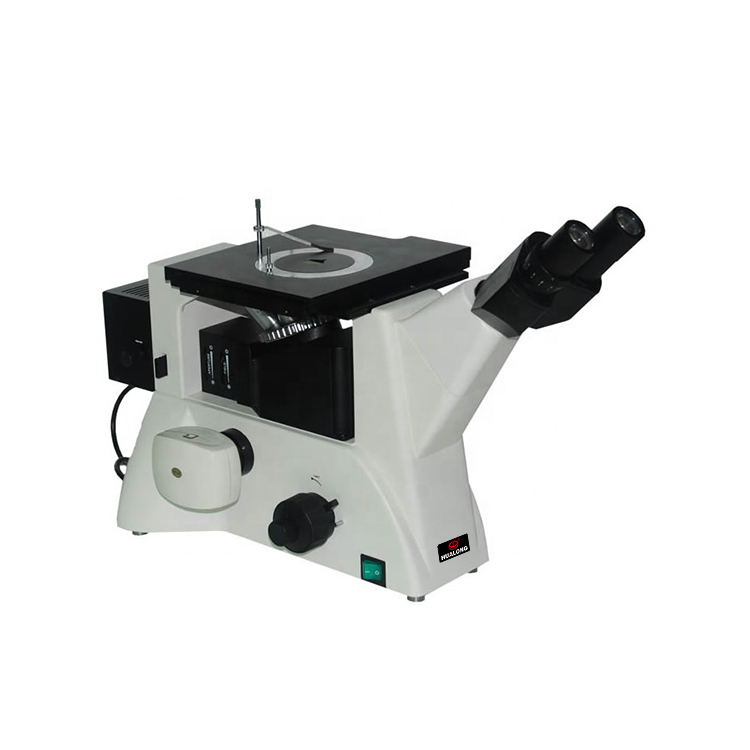

HL102-B Trinocular Inverted Metallurgical Microscope With Polarizing

1. Application
HL102-B Trinocular Inverted Metallurgical Microscope is equipped excellent infinity optical system and modularization function design, you can easily upgrade the system to achieve polarization observation, dark field observation and other functions.
Compact and stable high rigidity body,fully embodies the anti-vibration requirements of microscope operation. Ideal design for ergonomic requirements, make the operation more convenient and comfortable, and space wider.
Suitable for microscopic observation of the microstructure and surface morphology, it is the ideal instrument for metal, mineralogy, precision engineering research.

2. Specification

Eyepiece	Wide field WF10X (visual field number Φ22mm)
Objective lens (Infinity long working distance Achromatic Objective lens)	HL102-B (With bright field objectives)	PL L10X/0.25 Working distance: 20.2 mm
		PL L20X/0.40 Working distance: 8.80 mm
		PL L50X/0.70 Working distance: 3.68 mm
		PL L100X/0.85(Dry) Working distance: 0.40 mm
Eyepiece tube	45°tilt, IPD adjustment range 53~75mm
Focusing mechanism	Coaxial coarse focus,With locking device,Micro-grid value:2μm
Converters	Five holes (Backward ball bearing inner locating)
Stage	Mechanical moving stage, Dimensions:242mmX200mm, Moving Range:30mmX30mm
	Circular rotating stage plate size: The largest diameter Ф130mm, Minimum clear aperture less than Ф12mm
Illuminating system	6V30W Halogen lamp, adjustable brightness, suitable for FCM5000
	Built-field diaphragm, aperture diaphragm and pull plate polarizer
	With frosted glass; yellow, green and blue color filters basic configuration
Adaptor	0.5X Computer Adaptor
Digital camera	3.0 MP Digital Camera
