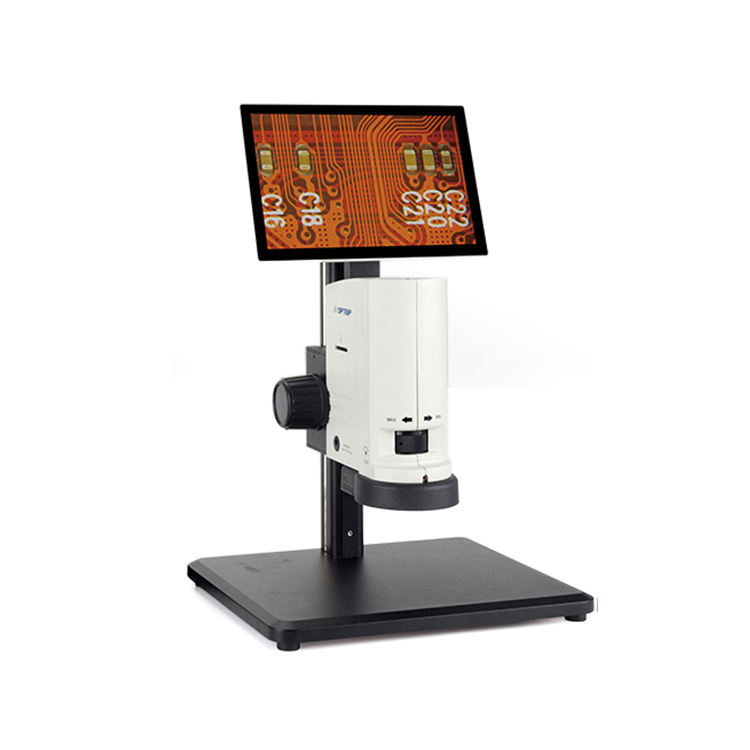

HL-JSZ7P Video Stereo Microscope

1. Application
The video all-in-one machine has a compact and beautiful appearance design. It integrates a continuous zoom optical lens and a high-definition digital camera. The display, camera, and ring light are all powered by the mirror body, which solves the long-term problem of your wiring harness. You can freely choose with or without screen according to your needs.

2. Specification

Configuration		Model
Parts	Specification	HL-JSZ7P
lens group	Mirror body with screen, IPS 10-inch high-definition touch screen, variable angle of screen (-5° to 15°)	·
	Continuous zoom objective 0.7X-5X, built-in camera module, real-time HDR, built-in OSD menu, 1/3” COMS 4M, built-in storage 16G, support SD card storage, image output interface: HDMI, USB2.0, Mini USB2.0.	·
objective lens	1X Large Objective, WD105mm	·
	1.4X large objective lens, WD100mm	O
	0.5X large objective lens, WD170mm	O
light source	LED Ring Light: 56 LEDs, with dimming knob, switch, color temperature 5000-5500K	·
light source	Two-speed zone LED light, with switch dimming knob, inner and outer ring zone control, color temperature 5000-5500K	O
base	Vertical arm type large plate base set, stroke 225mm	·
other	USB cable 1.5M; HDMI cable 5M; Allen key	O

Note: "·" is standard configuration; "O" is optional
