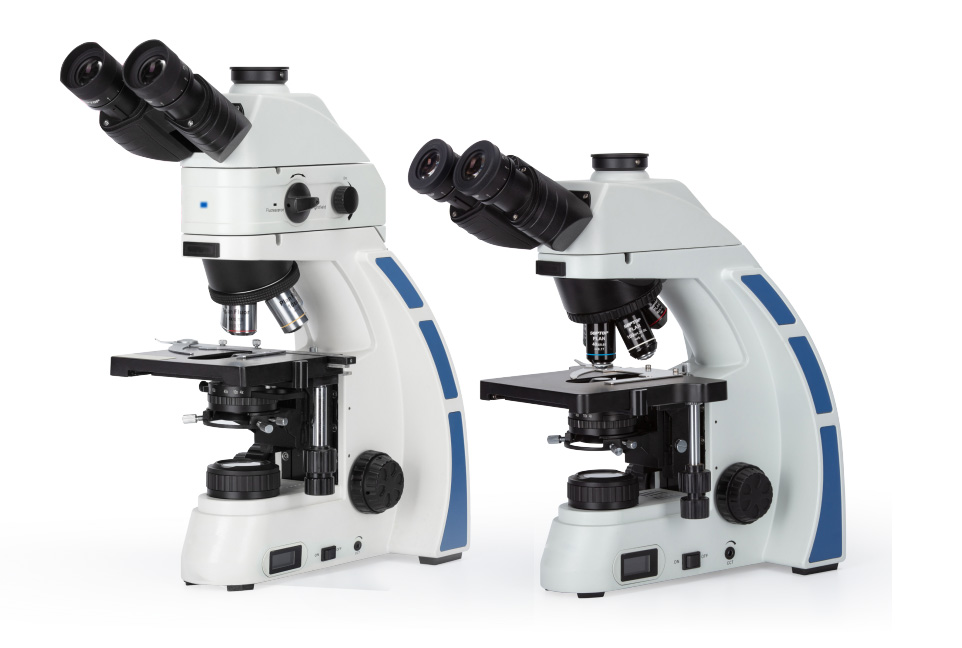

HL-L630F Series LED Fluorescent Microscope

Application
HL-L630F LED fluorescent microscope is widely used in biology, iatrology, immunology, oncology, genetics, material science, etc, It can also proceed general transmission view.
Excellent infinite optical system makes the fluorescent image clearty.
LED bulb can work up to 20000 hours.
It also has several high efficient fluorescent wave bands for selection, suitable for different fluorescent application.

Specification:

Optical system	Infinity chromatic aberration correction system
Observation head	30° observation head, hinged binocular, hinge group can rotate 360°, easy to raise the eye point, fixed eyepiece tube, pupil distance adjustment range 50-75mm
	30° observation head, hinged trinocular, hinge group can rotate 360掳, easy to raise the eye point, fixed eyepiece tube, pupil distance adjustment range 50-75mm, fixed splitting ratio, R: T=8: 2
	30° integrated hinged digital observation head, hinge group can rotate 360° for eye point lifting, fixed eyepiece tube, pupil distance adjustment range 50-75mm, fixed splitting ratio, R: T=8: 2; built-in camera module, 1/3"CMOS 4M 2688x1520@15fps, built-in storage 16G, support SD card storage; image output interface HDMI, WIFI, MiniUSB
	(Special for fluorescence) 30° observation head, hinged trinocular, hinge group can rotate 360°, easy to raise the eye point, fixed eyepiece tube, pupil distance adjustment range 50-75mm, fixed splitting ratio, R: T=5: 5
Eyepiece	High eye point and large field of view flat field eyepiece PL10X/20mm, adjustable diopter, can be equipped with micrometer
	High eye point and large field of view flat field eyepiece PL10X/22mm, adjustable diopter, can be equipped with micrometer
Objective lens	Infinity plan achromatic objective lens (4X, 10X, 20X, 40X, 100X)
	Infinity plan phase contrast objective lens (10X, 20X, 40X, 100X)
	Infinity plan semi-apochromatic fluorescence objective lens (4X, 10X, 20X, 40X, 100X)
Converter	Internal positioning five-hole converter (with memory function)
Focusing mechanism	Low hand position coarse and fine movement coaxial, with tension adjustment device and upper limit device
Stage	150mm×140mm double-layer composite mechanical moving platform, double slice (slide) clamp, moving range: 76mm×50mm; precision: 0.1mm [triangular guide rail]
	150mm×162mm double-layer composite mechanical moving platform, double slice (slide) clamp, moving range: 76mmX50mm; precision 0.1mm; X-axis single linear rail drive
Condenser	N.A.1.25 Koehler illumination condenser set (with plug-in phase contrast and dark field accessory interface), dial-type variable aperture diaphragm, dovetail slot, condenser center adjustable, gear rack lifting
Transmitted illumination system	3W LED lighting, continuously adjustable light intensity, with LCD display, adjustable color temperature (3000K-5600K) and brightness memory function
LED fluorescent reflected illumination	UV2 UV long pass LED fluorescence intermediate module, with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 385nm
	B4 Tuberculosis special module LED fluorescence intermediate module, with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 455nm
	B1 Band pass LED fluorescence intermediate module, with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 470nm
	G1 Band pass LED fluorescence intermediate module, with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 560nm
External power adapter	Use external wide voltage power adapter, input 100V-240V, output 15V/2.67A
Photographic and video accessories	0.35X, 0.5X, 0.65X, 1X, C-mount, focus adjustable
Others	Dark field plate set, phase contrast plate set, polarizer set, analyzer set
