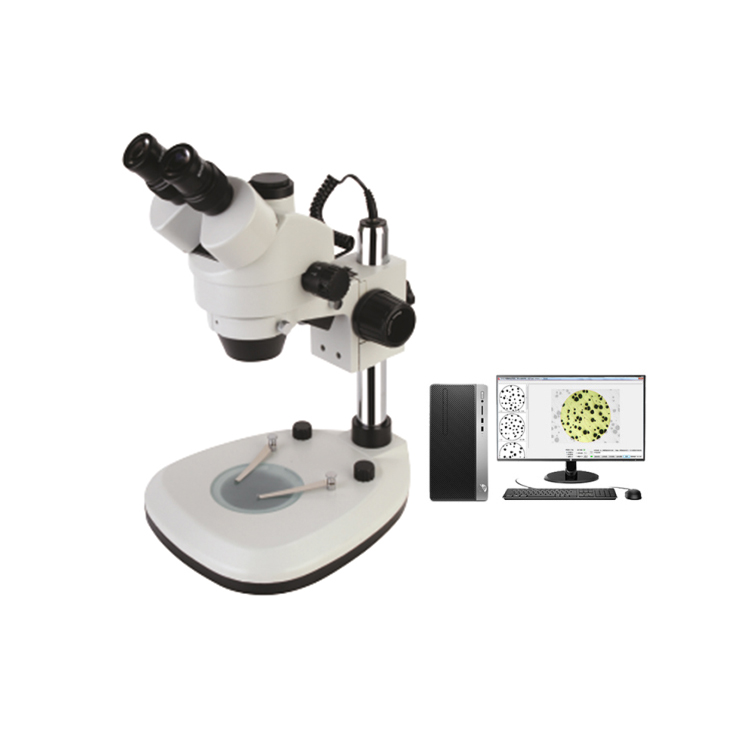

HL-JSZ7W Computerized Zoom Stereo Microscope

1. Application
HL-JSZ7W computer-based stereo microscope is a trinocular continuous zoom stereo microscope. The classic design of the machine makes the body more stable, excellent optical performance, complete accessories, and diverse combinations to meet modern biological requirements. , Medicine, scientific research, online detection of modern electronic industry.

2. Specification

Configuration		Model
Parts	Specification	HL-JSZ7W
Observation tube	Trinocular viewing tube. 45° tilt, 360° rotation; can be equipped with camera interface	·
Objective lens	Continuous zoom objective 0.7X-4.5X, working distance 100mm. Under 0.7X objective lens: field of view 28.6mm, adding 0.5X auxiliary objective lens can achieve 57.1mm	·
The eyepiece	High point wide field eyepiece WF10X/20mm	·
Standard focusing frame	SZMA1 focusing lens frame, focusing hand wheel with adjustable tightness, lifting range of 50mm	·
The base	B5 (compatible with all focusing frames)	·
The auxiliary lens	0.5X/165mm、 2X/30mm.	O
An external light source,	56 LED ring lights with adjustable brightness	·
cameras	Five million SONY chip camera units	·
	FCL-RS image measurement software
	0.5X adapter mirror interface
micrometer	High precision measuring micrometer(grid value 0.01mm)
Computer	Brand computer	O

Note: "·" is standard configuration; "O" is optional
