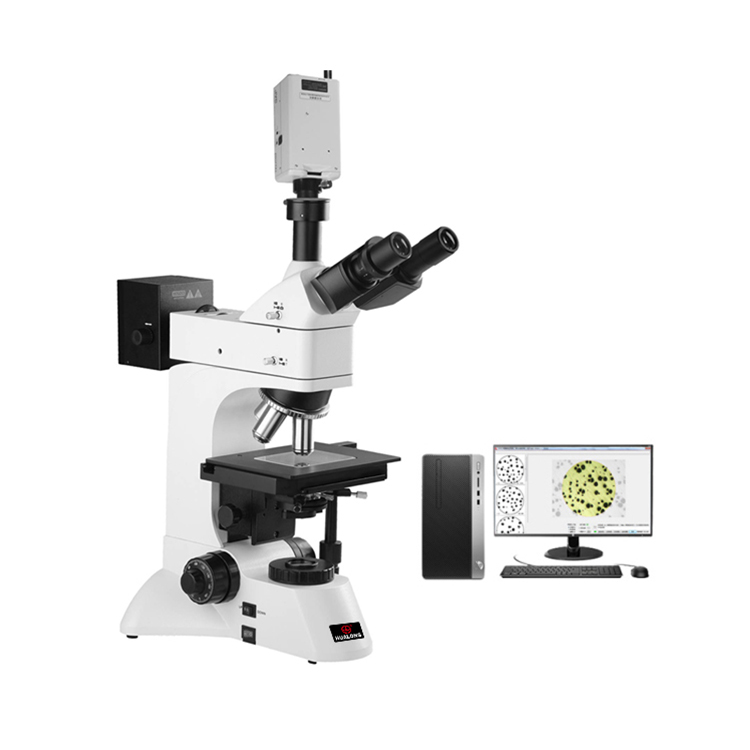

HL8000W Computerized metallurgical microscope

Introduction:

The HL8000W computerized metallographic microscope is a trinocular transflective upright metallographic microscope, which is suitable for microscopic observation of opaque or transparent objects. Adopting excellent design concept of infinity optical system and module function, it can provide excellent optical performance and product system upgrade, realize the functions of simultaneous transmission and reflection, independent illumination, polarized observation, etc. It is an ideal instrument for research in biology, metallurgy, mineralogy, precision engineering, and electronics.

FMIA2020 metallographic image analysis software system

Overview:

The FMIA2020 version of the metallographic image analysis software system is our company's combination of current casting companies, auto parts companies, heat treatment companies, bearing steel industry, power system industry, railway parts industry, and various related testing companies' demand for metallographic detection to improve products. The pass rate helps to improve the inspection level of various laboratories. We collected the opinions of experts and teachers in various industries and developed this set of FMIA2020 version of the metallographic image analysis software system.

The software system contains about 700 commonly used sub-modules in 150 categories, basically covering the commonly used metallographic standards, and adapts to the requirements of most unit metallographic analysis and inspection. According to the needs of different industries, open relevant categories are specified to meet the requirements of industry testing.

In view of the continuous increase of new materials and imported brand materials, materials and evaluation standards that have not been entered in the software can be customized and entered.

Characteristics:

Software installation is more intuitive and concise

The brand-new software installation, registration, and calibration boot mode are simple and clear, and can be completed through the default prompt.

Genuine software guarantee system

After the software installation is completed, the genuine software is activated first, followed by the computer hardware ID registration, so as to ensure the customer's genuine rights and interests.

Demand standards can be customized

In addition to the standard detection module, the detection module can be customized according to customer needs, such as: enterprise standards, special industry standards, etc.

Report template can be modified

Report templates can be customized for different companies.

Genuine software can be upgraded

Perform free software upgrades based on the implementation time of the National Standardization Committee.

Wide range of computer systems

This software can be installed and run under Windows 7, Windows 10

Basic functions:

1. Rating level

The implementation standard for the correct selection of materials, through the camera system of the metallurgical microscope, capture and take pictures of the sample metallographic structure, and enter the evaluation level interface:

(1) Automatic rating: There are quantitative standards (such as calculation formulas, percentage ranges, etc.) in the metallographic standards. The software automatically grades, gives the metallographic level, and generates a metallographic test report.

(2) Comparative rating: The software can also compare the sample map and the map in the gallery to determine the level artificially.

2. Geometric measurement

The software provides a variety of measurement tools such as distance, rectangle, circle, polygon, polyline length, angle, straight line angle, radian, point-to-center measurement, etc. to meet the user's basic geometric measurement functions and obtain relevant measurement data.

(1) Data export: the measured data can be used to generate a dedicated measurement report with graphics and text, and can also be directly imported into EXCEL.

(2) Save the image: the measured data can be automatically integrated with the picture, and the accuracy of the measured part is displayed intuitively and clearly.

3. View Gallery

The software provides the function of viewing the gallery, and provides users with the latest national standard level gallery.

4. Fixed printing

The software provides fixed-size printing function, users can achieve fixed-size printing of pictures according to the actual printing multiple requirements.

5. Image stitching

For customers who need to detect a larger field of view, the image stitching function is provided in the software to meet the needs of larger field of view image capture, which solves the embarrassment of being unable to take pictures caused by the lack of microscope field of view.

6. Professional functions

Provides customers with professional function customization windows, and can customize relevant functional modules according to customer needs: such as confocal images, three-dimensional light maps, image databases, and image comparison.
