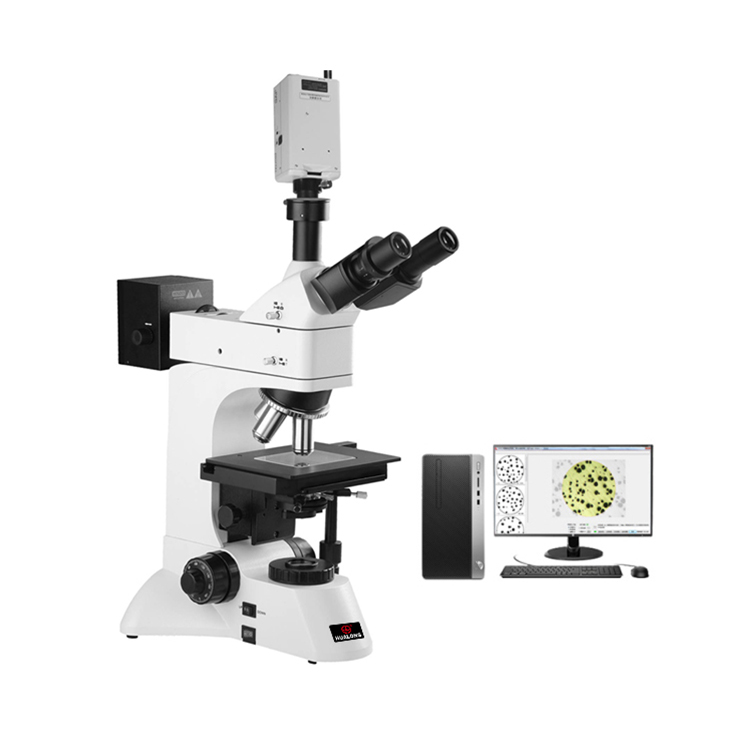

HL301-DW Computer Type Trinocular Upright Multifunction Metallographic Microscope

1. Application
HL301-DW Computer Type Trinocular Upright Multifunction Metallographic Microscope is the elite of the optical microscope technology, advanced photovoltaic technology, sophisticated computer imaging technology together and successfully developed a high-tech product.
Either manual observation metallographic images, and can be easily observed timely metallurgical image on a computer monitor, may at any time to capture the record metallurgical picture, then analyzing microstructure map, ratings, etc., you can also save or print high pixel photomicrographs.

2. Specification

Model	HL301-DW
Eyepiece	Large field of vision WF10X(Φ20mm)
Light and dark field objectives	Infinity long distance plan achromatic objective (no cover glass),PL 5X/0.12
	Infinity long distance plan achromatic objective (no cover glass),PL L10X/0.25
	Infinity long distance plan achromatic objective (no cover glass),PL L20X/0.60 (spring)
	Infinity long distance plan achromatic objective (no cover glass),PL L40X/0.75 (spring)
Eyepiece tube	Three eyepieces, tilt 30˚, (built-in check polarizer, can be switched)
Epi-illumination system	12V/50W Halogen lamp, adjustable brightness
Epi-illumination system	Epi-illuminator with field diaphragm, aperture diaphragm and polarizer, (yellow, blue, green) filter and frosted glass
Focusing mechanism	Coaxial coarse and fine focusing,with limit locking device,micro-grid values:2μm.
Converters	Four holes (Backward ball bearing inner locating)
Stage	Double mechanical movement type (size:210mmX140mm,moving range:75mmX50mm)
Transmitted illumination system	Abbe condenser NA.1.25 can move up and down
	Blue filter and frosted glass
	Collector, halogen lighting applicable (Built-field diaphragm)
	12V 30W Halogen lamp, adjustable brightness
Metallographic analysis software	Metallographic automatic analysis system JX2015 version 3 megapixel Atlas camera 0.5 X adaptation Micromeasuring ruler (accuracy: 0.01mm)
