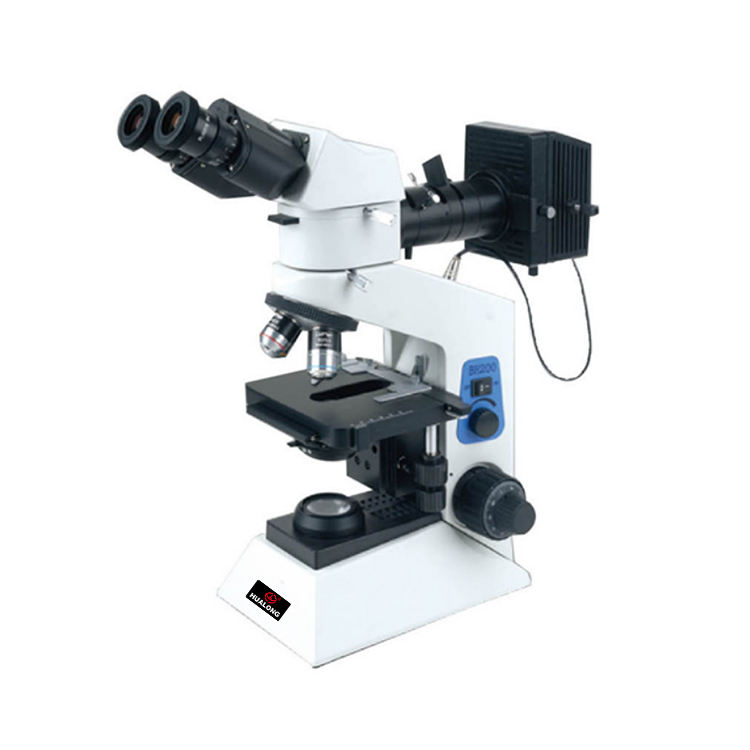

HL401 Trinocular Uright Metallographic Microscope

Configuration

Model

Parts

Specification

HL401

Lighting system

Optical systems with finite telophores correction

·

Objective tube

Hinged trimesh, 30° tilt, 360° rotation, adjustable visual ability

·

Eyepiece

High point large field flat field eyepiece PL10X/18mm

·

High point large field eyepiece PL10X/18mm, with micrometer

O

High point and large field eyepiece WF15X/13mm with micrometer

O

High point and large field eyepiece WF20X/10mm with micrometer

O

Long anomalous field achromatic objective

LMPL5X /0.125  WD15.51mm

·

LMPL10X/0.25   WD8.7mm

·

LMPL20X/0.40   WD8.8mm

·

LMPL50X/0.60   WD5.10mm

·

LMPL100X/0.80  WD2.0mm

O

Convener

Internally positioned four hole converter

·

Internally positioned five hole converter

O

Focusing mechanism

Low coaxial coarse micro-motion focusing frame, stroke 25mm, fine tuning accuracy 0.002mm, with coarse elastic adjustment device and random limit device, built-in 6V30W transmission light lighting, up and down lighting switch

·

Objective table

Composite double-layer mechanical moving platform, table size 140*132mm, moving range: 76mmX50mm, accuracy 0.1mm.

·

Lighting system

Reflective Cora lighting, adaptive wide voltage 100V-240V, 6V/30W halogen lamp, continuous intensity adjustable, with variable aperture and field of view diaphragm, field of view diaphragm center adjustable

·

Polarized attachment

Offset mirror insert, offset mirror insert

O

Color filter

Yellow, green, blue, frosted color filter

·
