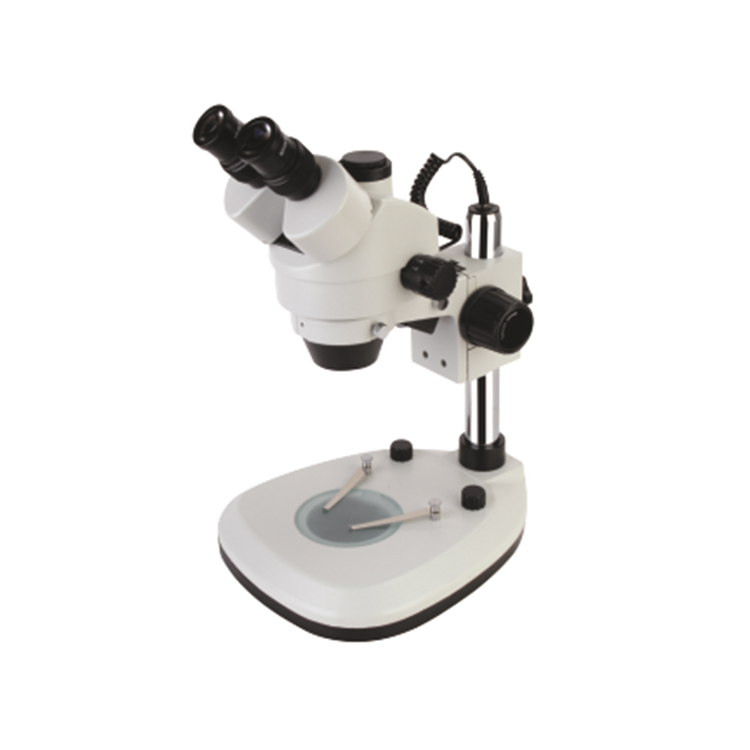

HL-JSZ7 Trinocular Continuous Zoom Stereomicroscope

1. Features
1.1. Achromatic objective lens and wide field, high eye point eyepiece combination, make the field wide, flat and clear.
1.2. Precision zoom rotation ensure continuous zoom.
1.3. Long working distance objectives, endoscopic operation is extremely easy.
1.4. Binocular observation can be synchronized with photography, camera shooting.
1.5. With anti-static function, protect sensitive components from electrostatic damage.
1.6. Optional 0.5X, 1.5X, 2X large objective lens.

2. Specification

NO.	Model	NAME	HL-JSZ7	REMARK
1		Objective Lens	●	0.7×-4.5×； WD=110㎜
2	ES10	10× Large Field Of Vision Flat-field Eyepiece	●●	FN=20㎜
3	ES15	15× Large Field Of Vision Flat-field Eyepiece	○○	FN=16㎜
4	ES20	20× Large Field Of Vision Flat-field Eyepiece	○○	FN=13㎜ (Original Olympus Eyepiece)
5	ES25	25×Flat-field Eyepiece	○○	FN=9㎜
6	ES30	30×Flat-field Eyepiece	○○	FN=7㎜
7	18T.4	0.5×Camera Eyepiece	●	WD=192㎜
8	18T	Binocular Body	○	Tilt 30°
9	18TA	Trinocular Body	●	Tilt 30°
10		Loading Plate 1	○	Black And White Plastic(φ95)
11		Loading Plate 2	●	Frosted Glass(φ95)
12		Oblique Spot Light	○	Kodak Halogen
13		Transmittance Light	●	Kodak Halogen
14		Annular Fluorescent Lamps	●	External Hanging Type
15		LED Annular Lights	○	External Hanging Type
16	RZ300	Digital Cameras	●	USB2.0 Data Interface. 3 Million Real-time Pixel. With Software.
17		Computer	○
18		Printer	○
NOTE: (●) Are Standard Accessories, (○) Are Optional Accessories.
