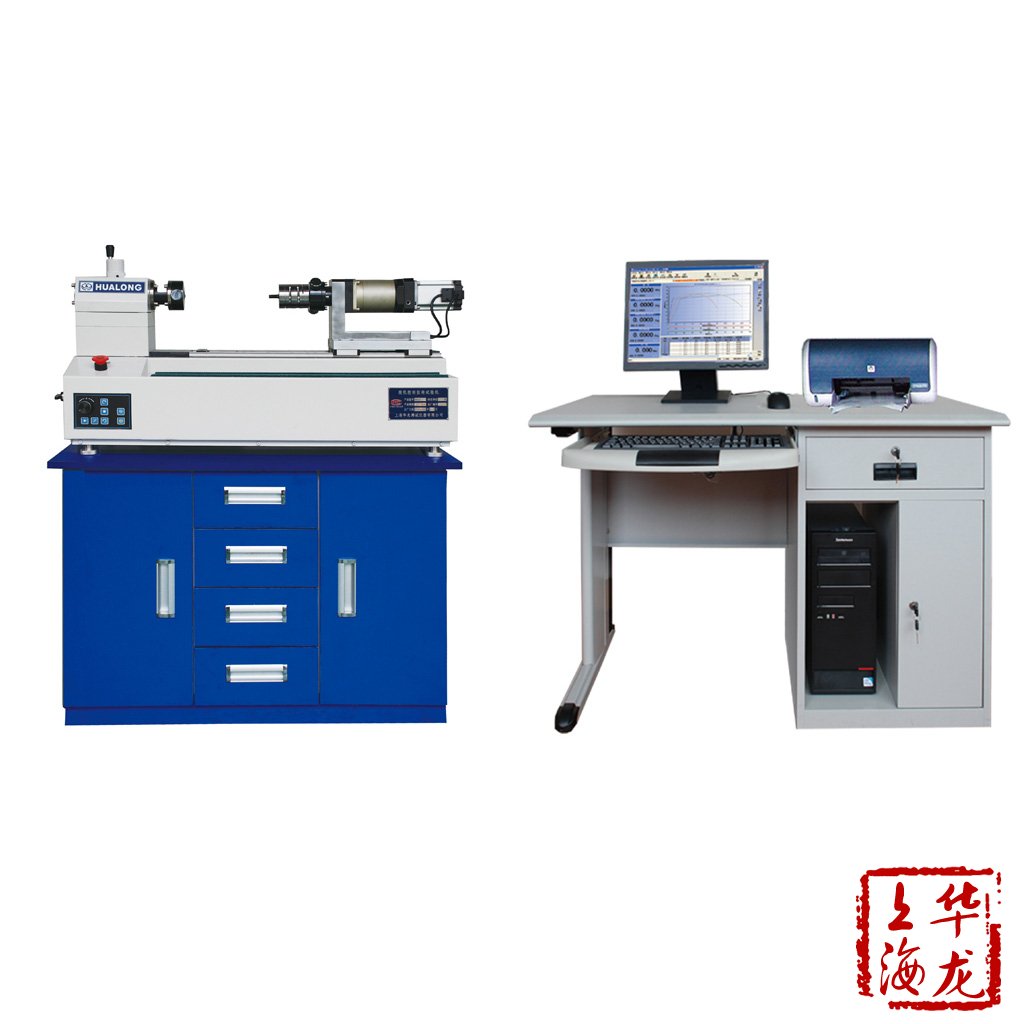

Double station torsion testing machine

The main machine is composed of a base, a vehicle body (reduction machine body and load sensor body) and a microcomputer measuring system. The loading mechanism mounted on the vehicle body can slide freely on the frame rail. The loading mechanism is driven by a Panasonic servo motor to apply torque to the sample. The torque value and the tightening load of the sample are measured by the sensor, and the torsion angle is photoelectrically encoded. The detector detects the detected signal and transmits it to the processing system to complete the measurement of the torsion index of the sample and the drawing of the curve.
With dynamic display and control functions of torque, torsion angle and test curve.
It has an arbitrary setting with a twist angle, reaches the set value and automatically maintains the function.
With the torque value arbitrarily set, the set value is reached and the function is automatically maintained.
It has any setting for tightening load, reaches the set value and automatically maintains the function.
Has the maximum torque value and minimum torque hold function.
Generate a tension-torque map, and a twist angle-torque map.
The bolt diameter can be input into the threaded connection pair to calculate the participating strength value, and the mechanical performance index can be automatically obtained and a complete test report can be printed.
It has the function of storing test results, and can access and read test results, and can reanalyze data and curves, including partial enlargement and data re-editing.
The sample conditions can be automatically stored, automatically recalled, or reset.
With overload protection
