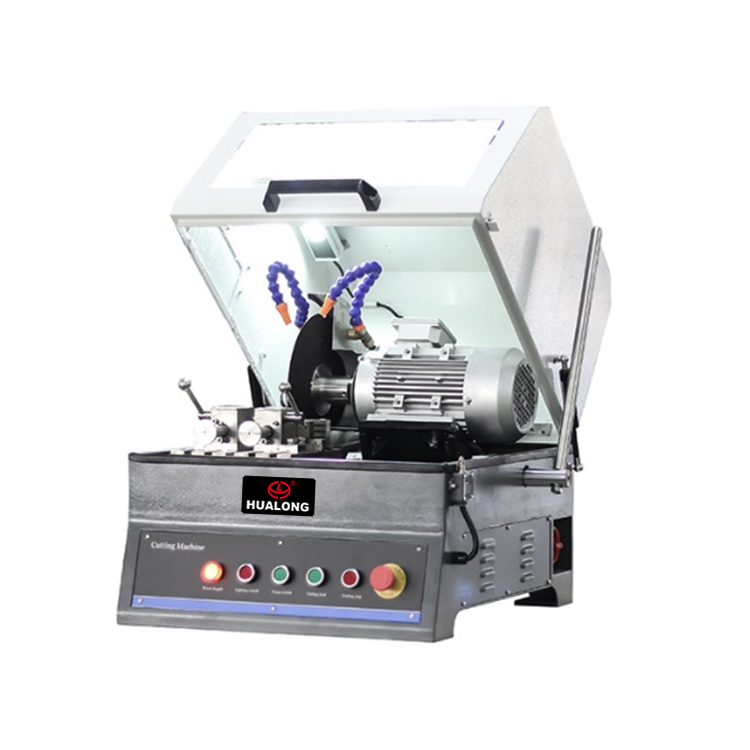

HLC-300T Metallographic Sample Cutting Machine

1. Product Features.

-The machine adopts fully enclosed structure, sealing effect is good, safe and reliable;-The machine adopts fully enclosed structure, sealing effect is good, safe and reliable;

-This machine adopts fast clamping device, clamping objects more quickly and accurately

-Double air spring device, balance the weight of the upper cover shell, open and close the upper cover shell effortlessly;

-Special cooling water tank for circulating coolant;

-Jaws and work table and other main parts are made of stainless materials, long service life;

-Large cutting range and transmission power;

-Smooth rotation, low noise.

2. Technical Parameters.

Item	Specifications
Maximum cut diameter	Φ 85 mm
Cutting disc	300 * 2 * 32 mm
Spindle speed	2800r/min
Motor	2.2 KW 380 v, 50 hz
Emergency brake	Emergency stop switch
Cutting room lighting	Low voltage dc lighting
Cutting platform size	210*208mm
Clamp device	Standard fast fixture
Cooling device	External circulating filter tank 40L, multi-group adjustable water spray device and cleaning water gun
Cutting mode	Manually chopping
Observation window	Explosion-proof transparent engineering plastics
Overall dimensions	680670640mm
Weight	160Kg
