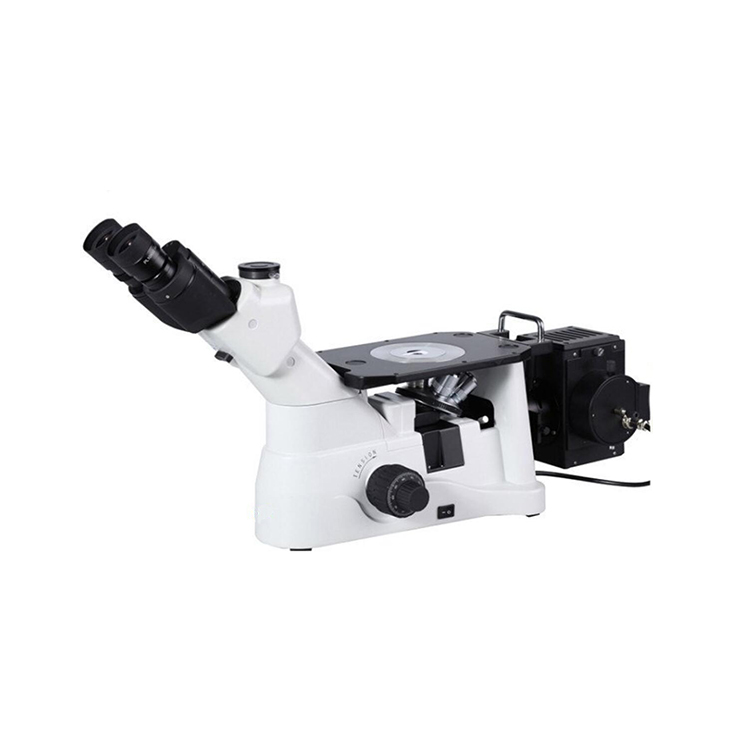

1. Product features.
-Total magnification: 50 -500X
-Optical system:Infinite aberration correction optical system(CSIS),better image quality, higher resolution, more comfortable observation;
-Objective:Infinite and long working distance professional metallographic objective
50X and 100X objective are the chromatic aberration, the resolution of the image is greatly improved.
-Eyepiece: high eye point, ultra-wide visual field eyepiece, PL10x/22mm, providing wider and flatter observation space and various kinds of micrometer for measurement;
-Watch cylinder: hinged ternary, depending on the degree of the adjustable, 45 ° inclined, photographic camera, can be the observed image collection and preservation, configuration, computer and professional software to realize image analysis;
-Focusing mechanism: low hand rough fine tuning coaxial focusing mechanism, with coarse adjustment and elastic adjustment device, coarse adjustment of 38mm per revolution and fine tuning precision of 0.002mm;
-Lighting system: reflection-type cora illuminator with variable diaphragm and central adjustable diaphragm in the field of view, adaptive 90v-240v wide voltage, 12V50W imported halogen lamp, effectively protect and extend the service life of halogen bulb;
-Carrier platform: it can be equipped with coaxial low-hand adjustment moving ruler and extension plate of carrier platform to expand application space and meet different needs of customers.
2.Technical Specification.
Model |
HLM-41X |
|
Magnification |
50X、100X、200X、500X adjustable(standard 10X eyepiece,100X optional |
|
|
Specification |
Quantity |
High eye area wide field eyepiece PL10X/22mm |
1 couple |
|
Three eyepiece, eye observation tube, observation and photographic ratio, lo 45 ° inclined, pupil distance adjustment range:54-75mm; Low - hand coaxial rough fine - tuning focus mechanism.Movement 38mm,precision fine-tuning0.002mm, adjustable elastic device to prevent slipping Five-hole converter,reflector cora illuminator with a variable aperture and a central adjustable aperture. 12V50W halogen light,wide voltage100V-240V,the brightness is continuously adjustable. Fixed platform size:160mmX250mm. |
1set |
|
Infinitely long working distance field achromatic metallographic objective: 5XLMPL5X/0.15WD10.8mm |
1pc |
|
Infinitely long working distance field achromatic metallographic objective:10XLMPL10X/0.3 WD10mm |
1pc |
|
Infinitely long working distance field achromatic metallographic objective:20XLMPL20X/0.45 WD4mm |
1pc |
|
Infinitely long working distance field achromatic metallographic objective:50XLMPL50X/0.55WD7.8mm |
1pc |
|
Infinitely long working distance field achromatic metallographic objective:100XLMPL100X/0.80 WD2.1mm |
Optional |
|
12V50W halogen light,the filament center is adjustable,the focal length can be adjusted |
1set |
|
Metal carrier platform(Center hole diameter 12mm) |
1pc |
|
Mechanical ruler,movement 120(X)*78(Y)mm |
1set |
|
Rectangular loading table |
1pc |
|
Stage extension |
1pc |
|
Polarizing lens insert |
1pc |
|
Biased lens insert,can be 360 ° rotation |
1pc |
|
Filter(blue, green、yellow) |
1pc |
|
C-mount,adjustable focal,1/2CTV(0.5X), |
1pc |
|
Light source |
Reflective cora lighting system(12V50W halogen light), brightness can be adjusted |
