1. Application

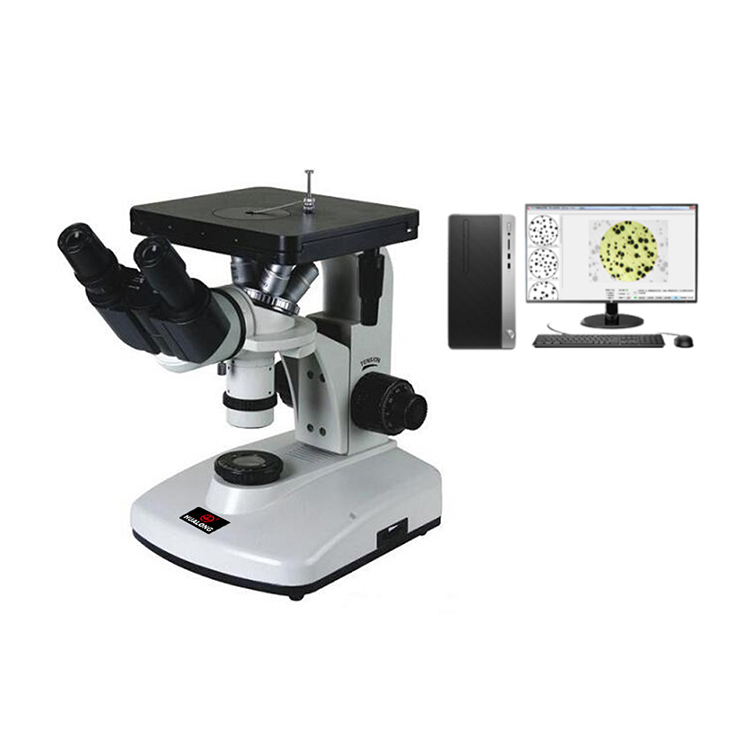

HL101-AW computerized binocular inverted metallographic microscope is a high-tech product which combines the elite optical microscope technology, advanced photoelectric conversion technology and cutting-edge computer image processing technology perfectly. It is convenient to observe the metallographic image on the computer monitor, so as to analyze the metallographic map, grade and so on, output and print the picture. Microscope imaging clear, broad field of view, the overall design in line with man-machine function, suitable for long time operation. It can be widely used in factory or laboratory for casting quality identification. Inspection of raw materials or study and analysis of metallographic structure of materials after treatment.
2. Specificateion
2.1. Eyepiece: |
|||||||||
Category |
Magnification |
View Diameter |
|||||||
Flat-field Eyepiece |
10X |
18 mm |
|||||||
|
12.5X |
15 mm |
|||||||
2.2. Objective: |
|||||||||
Category |
Magnification |
Numerical Aperture (NA) |
System |
Working Distance |
|||||
Achromatic Objective Lens |
10X |
0.25 |
Dry |
7.31 mm |
|||||
Semi-flat-field Achromatic Objective Lens |
40X |
0.65 |
Dry |
0.66 mm |
|||||
Achromatic Lens |
100X |
1.25 |
Oil |
0.37 mm |
|||||
2.3. |
The Total Optical Magnification |
100X-1250X |
|||||||
2.4. |
Mechanical Tube Length |
160 mm |
|||||||
2.5. |
Rough Focusing Fretting Institutions |
Focus Range |
7 mm |
||||||
|
|
Lattice-valued Scale |
0.002 mm |
||||||
2.6. |
Rough Dynamic Focusing Range |
7 mm |
|||||||
2.7. |
Machinery Table |
75 * 50 mm |
|||||||
2.8. |
Lighting Bulb |
6V 12W Bromine Tungsten Lamp |
|||||||
2.9. |
Containing Object (Diameter) |
10,20,42 |
|||||||
2.10. |
Instrument Weight |
5.00 KG |
|||||||
2.11. |
Packing Box Size |
360 * 246 * 360 Millimeters |
|||||||
2.12. |
Power Supply |
220V, 50Hz |
