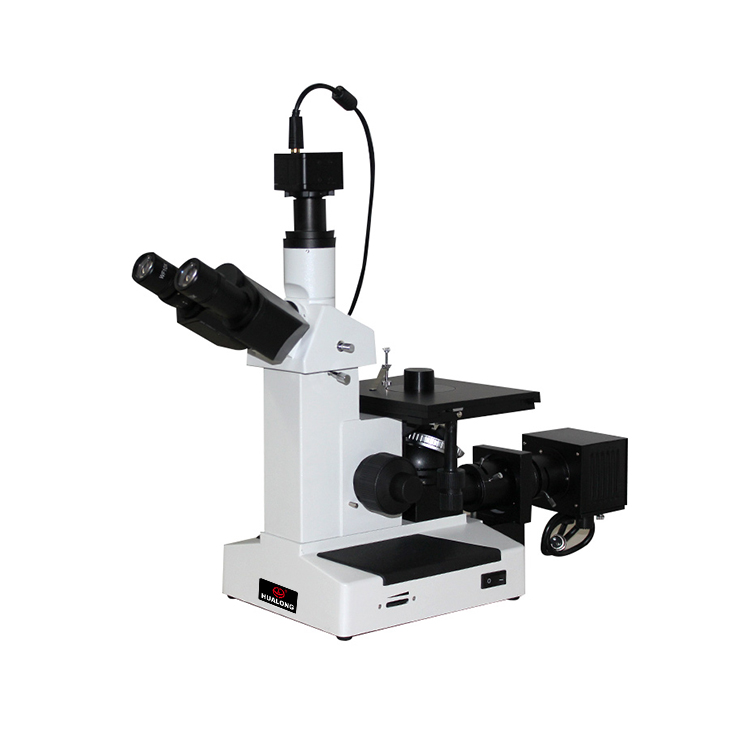

HL101-B Trinocular Inverted Metallurgical Microscope

1. Application
HL101-B Trinocular Inverted Metallurgical Microscope is mainly used for metal identification and analysis of the internal structure of organizations.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify the product quality in industrial application.
This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.

2. Specification

Model	HL101-B
Three Eyepiece Tube	Tilting Angle: 30° Adjustable Range: 55~75mm
Eyepiece	Wide View Eyepiece 10X (16mm)
Objective Lens	Flat Fielding Achromatic Objective Lens 10X, 20X, 40X, 100X (oil)
Total Magnification	100X~1000X
Loading Table	150 x 200mm Moving Range: Vertical 15mm, Horizontal 15mm
Eyepiece (Optional)	12.5X, 16X, 20X, 10X Flat Fielding Graduation Eyepiece (Grid Value 0.1mm)
Objective Lens (Optional)	60X, 80X.
