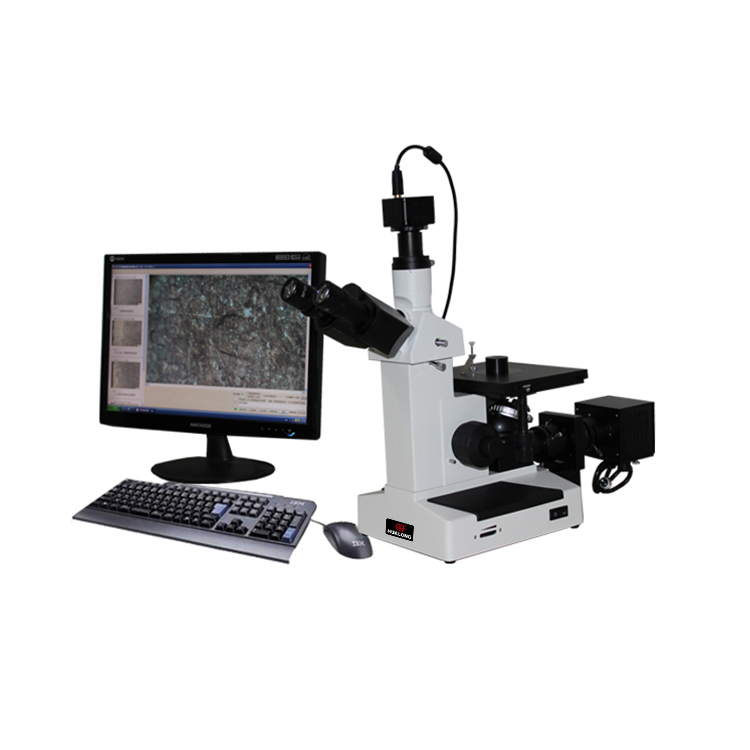

HL101-BW Trinocular Inverted Metallurgical Microscope with Software & Camera

1. Application

The instrument can used for identification and analysis structures tissue of metal surface, it is important tool for metal physics examining metallurgical structures. It is a crux equipment of appraising the quality for iron and steel, boiler, mine, machine tool tool, automobile, shipping, bearing, diesel engine,farm implement, industry etc.
The instrument can be equipped photo attachment and CCD video camera with photograph metallurgical structures. Metal pictures can be taken and the analyzed, measured, edited, output, saved and managed.

2. Specification

Model	HL101-BW
Three Eyepiece Tube	Tilting Angle: 30° Adjustable Range: 55~75mm
Eyepiece	Wide View Eyepiece 10X (16mm)
Objective Lens	Flat Fielding Achromatic Objective Lens 10X, 20X, 40X, 100X (oil)
Total Magnification	100X~1000X
Loading Table	150 x 200mm Moving Range: Vertical 15mm, Horizontal 15mm
Eyepiece (Optional)	12.5X, 16X, 20X, 10X Flat Fielding Graduation Eyepiece (Grid Value 0.1mm)
Objective Lens (Optional)	60X, 80X.
Accessories	Measuring microruler with objective lens (accuracy: 0.01mm) 0.5 X adaptation 3 million pixels Automatic metallographic analysis system
