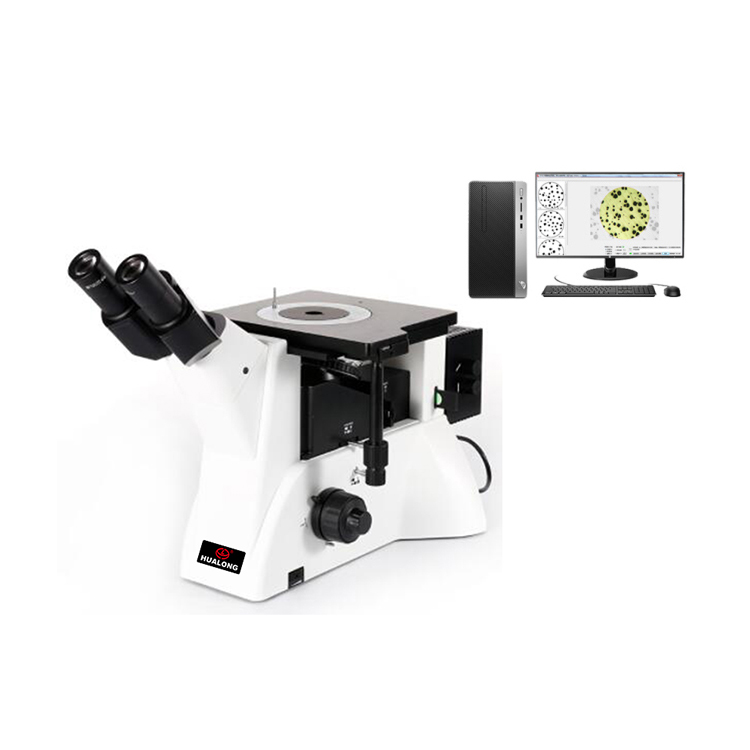

HL102-CW Trinocular Inverted Metallurgical Microscope With Polarizing Software Included

1. Application
The HL102-CW three-eye inverted metallographic microscope adopts the excellent infinite-distance optical system and modular functional design concept, which can easily upgrade the system and realize polarized light observation, dark field observation and other functions. The compact and stable high rigidity body fully embodies the vibration control requirements of the microscope operation. The ideal design meets the requirements of ergonomics, so that the operation is more convenient and comfortable, and the space is broader. It is suitable for microscopic observation of metallographic structure and surface morphology, and is an ideal instrument for metallographic, mineralogy and precision engineering research.
2. Specification

Eyepiece	Wide field WF10X (visual field number Φ22mm)
Objective lens	HL102-CW (With bright field objectives)	PL L5X/0.12 BD Working distance: 9.70 mm
		PL L10X/0.25 BD Working distance: 9.30 mm
		PL L20X/0.40 BD Working distance: 7.23mm
		PL L100X/0.70 BD Working distance: 2.50 mm
Eyepiece tube	45°tilt, IPD adjustment range 53~75mm
Focusing mechanism	Coaxial coarse focus,With locking device,Micro-grid value:2μm
Converters	Five holes (Backward ball bearing inner locating)
Stage	Mechanical moving stage, Dimensions:242mmX200mm, Moving Range:30mmX30mm
	Circular rotating stage plate size: The largest diameter Ф130mm, Minimum clear aperture less than Ф12mm
Illuminating system	6V30W Halogen lamp, adjustable brightness, suitable for FCM5000
	Built-field diaphragm, aperture diaphragm and pull plate polarizer
	With frosted glass; yellow, green and blue color filters basic configuration
Adaptor	0.5X Computer Adaptor
Digital camera	3.0 MP Digital Camera
Metallographic analysis software	Metallographic automatic analysis system JX2015 version 3 megapixel Atlas camera 0.5 X adaptation Micromeasuring ruler (accuracy: 0.01mm)
