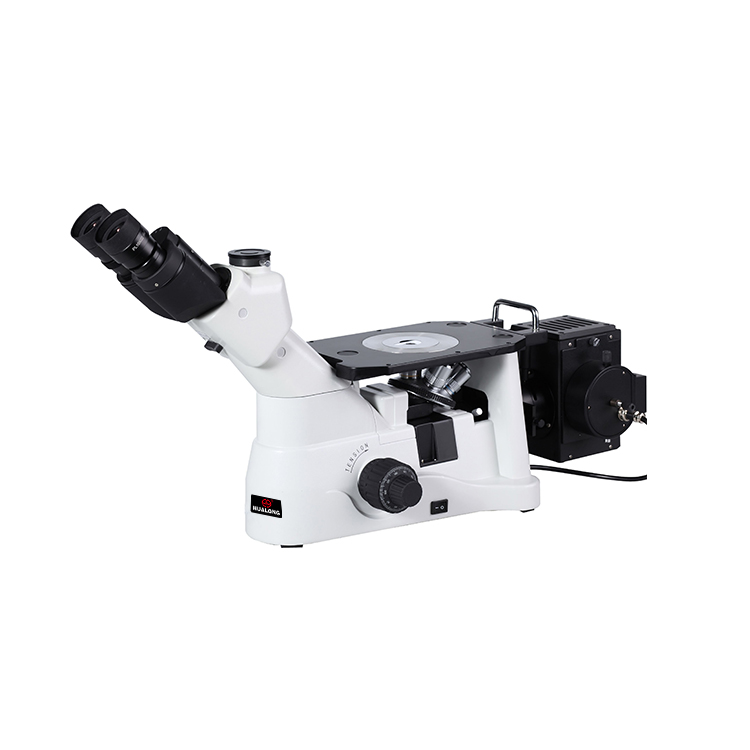

HL201-A Large Trinocular Inverted Metallurgical Microscope

1. Application
HL201-A adopts infinite optical system and modular function design. High eye point, ultra-wide field of view flat field eyepiece field of view diameter Ф22mm. It is suitable for metallographic analysis, microscopic observation of surface morphology and structure, semiconductor, FPD, circuit board, metal materials, precision cutting tools and other manufacturing fields, and is suitable for teaching and research. Standard semi-bright field objective, high definition and high color restoration; According to the different applications of industry and materials science, through modular combination, the realization of bright field, polarized light, and other observation methods.

2. Specification

Optical system	Infinity chromatic aberration correction optical system
Observation tube	Hinged trinocular head, 45° tilt, pitch adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopter split ratio: binocular 100%, binocular: trinocular = 80%: 20%
eyepiece	High eye point large field of view flat field eyepiece PL10X22mm
Objective lens	Infinity long working distance flat field achromatic metallographic objective: LMPL5X /0.15 / WD10.8
	Infinity long working distance flat field achromatic metallographic objective: LMPL10X/0.3 / WD10
	Infinity long working distance flat field achromatic metallographic objective: LMPL20X/0.45 / WD4
	Infinity long working distance flat field semi-reduction metallographic objective: LMPLFL50X/0.55 / WD7.8
	Infinity long working distance flat field semi-reduction metallographic objective lens: LMPLFL100X/0.8/WD2.15 (optional)
converter	Five-hole converter
Focusing mechanism	Coarse and fine-tuning coaxial, coarse adjustment per revolution: 38mm, fine-tuning per revolution: 0.2 mm, focusing accuracy: 0.002mm, with elastic adjustment device
Stage	Fixed platform: size 160X250mm
Workbench	Metal stage plate (center hole Φ12) / metal stage plate (center hole Φ25) / stage extension plate
Moving ruler	Low position coaxial mechanical moving ruler, stroke 120x78mm
Reflective lighting system	Reflective Kola illuminator with variable aperture diaphragm and central adjustable field diaphragm, adaptive 90V~240V wide voltage, 12V50W halogen lamp, center adjustable, continuously adjustable brightness
Polarizing device	Polarizer insert
Polarizing device	Detector insert, 360 degree rotation
Filter	Φ32mm yellow/green/blue/neutral
