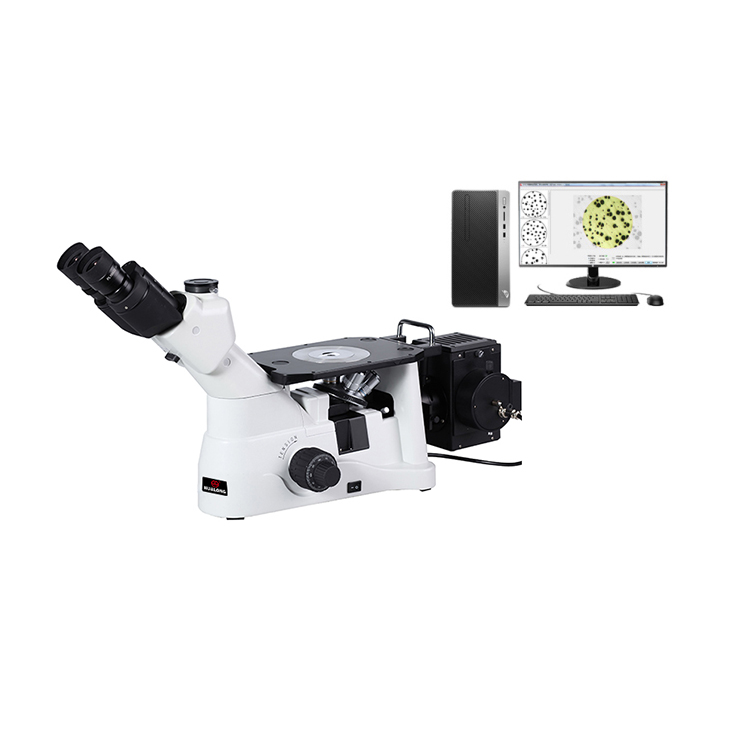

HL201-AW Large Trinocular Inverted Metallurgical Microscope With Software and Camera

Optical system

Infinity chromatic aberration correction optical system

Observation tube

Hinged trinocular head, 45° tilt, pitch adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopter split ratio: binocular 100%, binocular: trinocular = 80%: 20%

eyepiece

High eye point large field of view flat field eyepiece PL10X22mm

Objective lens

Infinity long working distance flat field achromatic metallographic objective: LMPL5X /0.15 / WD10.8

Infinity long working distance flat field achromatic metallographic objective: LMPL10X/0.3 / WD10

Infinity long working distance flat field achromatic metallographic objective: LMPL20X/0.45 / WD4

Infinity long working distance flat field semi-reduction metallographic objective: LMPLFL50X/0.55 / WD7.8

Infinity long working distance flat field semi-reduction metallographic objective lens: LMPLFL100X/0.8/WD2.15 (optional)

converter

Five-hole converter

Focusing mechanism

Coarse and fine-tuning coaxial, coarse adjustment per revolution: 38mm, fine-tuning per revolution: 0.2 mm, focusing accuracy: 0.002mm, with elastic adjustment device

Stage

Fixed platform: size 160X250mm

Workbench

Metal stage plate (center hole Φ12) / metal stage plate (center hole Φ25) / stage extension plate

Moving ruler

Low position coaxial mechanical moving ruler, stroke 120x78mm

Reflective lighting system

Reflective Kola illuminator with variable aperture diaphragm and central adjustable field diaphragm, adaptive 90V~240V wide voltage, 12V50W halogen lamp, center adjustable, continuously adjustable brightness

Polarizing device

Polarizer insert

Detector insert, 360 degree rotation

Filter

Φ32mm yellow/green/blue/neutral

Metallographic analysis software

Metallographic automatic analysis system

5 megapixel map camera

0.5X adapter

Micrometer (accuracy is 0.01mm)
