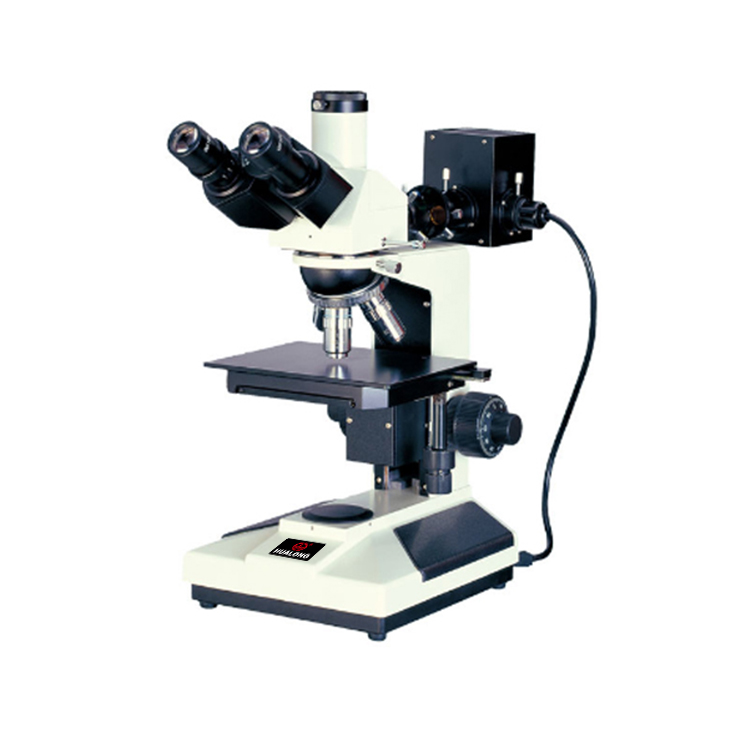

HL301-A Series Metallographic Microscope used for microscopic observation of opaque objects. This type has Epi-illuminator, long achromatic objective lens (no cover glass), wide-field eyepieces and set polarizer device. Image clarity, easy operate. It is the ideal instrument for metal, mineralogy, precision engineering research. Suit for schools, research, factories and other departments.
Model |
HL301-A |
Eyepiece |
Wide field WF10X(Φ18mm) |
Objective |
Long achromatic objective lens (no cover glass) PL 5X/0.12 |
Long achromatic objective lens (no cover glass) PL L10X/0.25 |
|
Long achromatic objective lens (no cover glass) PL L40X/0.6 |
|
Long achromatic objective lens (no cover glass) PL L60X/0.75 |
|
Observation tube |
Compensation Free Trinocular, 30° tilt, (built inspection polarizer, can be switched) |
Lighting system |
6V 20W, Halogen lamp, brightness can be adjusted |
Epi-illumination system |
Epi-illuminator with optical measurement, aperture diaphragm, polaroid. With frosted glass; yellow, green and blue color filters basic configuration |
Focusing mechanism |
Coaxial coarse focus, Micro-grid value:2μm, Coarse dynamic elastic adjustable, with lock and limit device |
Converters |
Four holes (Backward ball bearing inner locating) |
Stage |
Double mechanical movable (size: 185mmx140mm, moving range: 75mmx50mm) |
