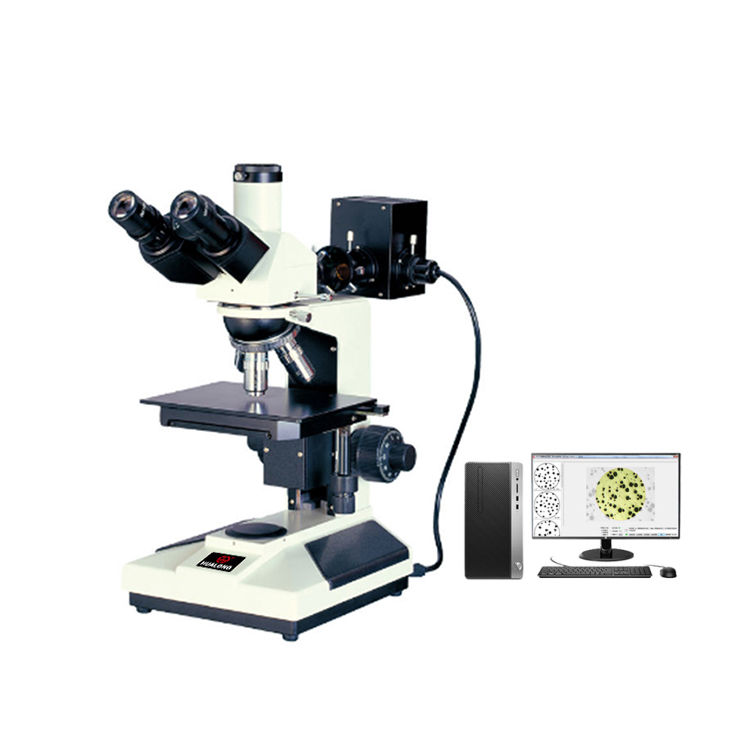

HL301-AW Trinocular Upright Metallographic Microscope With Software & Camera

1. Application
HL301-AW series positive metallographic microscope is suitable for microscopic observation of opaque objects. This instrument is equipped with falling illuminator, long aberrant field achromatic objective lens (without cover glass), large field eyepiece and built-in polatizing observation device. It has the characteristics of clear image, good contrast and easy operation, and is an ideal instrument for metallogy, mineralogy, precision engineering and electronics. Suitable for use in schools, scientific research, factories and other departments.

2. Specification

Model	HL301-AW
Eyepiece	Wide field WF10X(Φ18mm)
Objective	Long achromatic objective lens (no cover glass) PL 5X/0.12
	Long achromatic objective lens (no cover glass) PL L10X/0.25
	Long achromatic objective lens (no cover glass) PL L40X/0.6
	Long achromatic objective lens (no cover glass) PL L60X/0.75
Observation tube	Compensation Free Trinocular, 30° tilt, (built inspection polarizer, can be switched)
Lighting system	6V 20W, Halogen lamp, brightness can be adjusted
Epi-illumination system	Epi-illuminator with optical measurement, aperture diaphragm, polaroid. With frosted glass; yellow, green and blue color filters basic configuration
Focusing mechanism	Coaxial coarse focus, Micro-grid value:2μm, Coarse dynamic elastic adjustable, with lock and limit device
Converters	Four holes (Backward ball bearing inner locating)
Stage	Double mechanical movable (size: 185mmx140mm, moving range: 75mmx50mm)
Metallographc analysis software	Metallographic automatic analysis system JX2015 version 3 megapixel Atlas camera 0.5 X adaptation Micromeasuring ruler (accuracy: 0.01mm)
