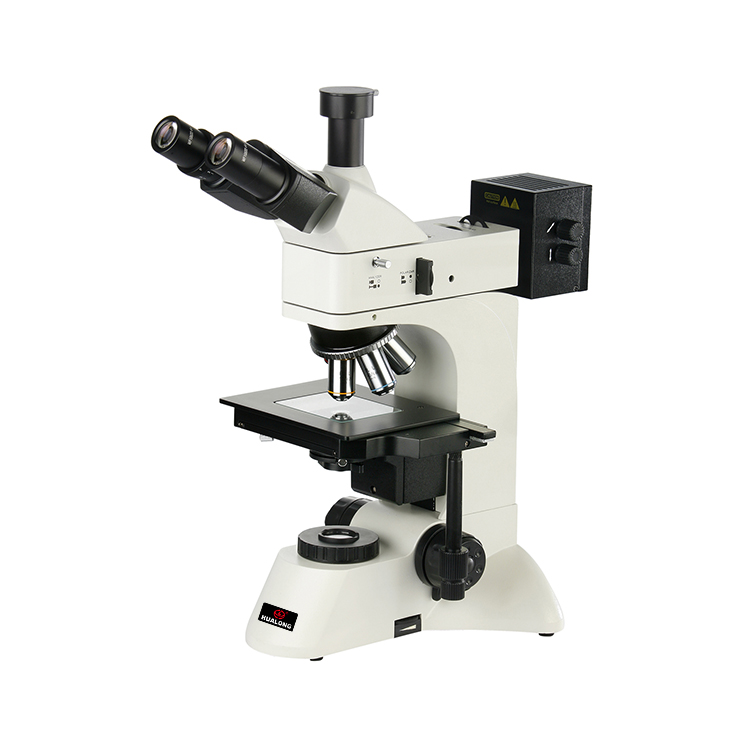

HL301-C Trinocular Upright Multifunction Metallurgical Microscope

1. Application
HL301-C trinocular transflective upright metallographic microscope is suitable for microscopic observation of opaque or transparent objects. Adopting the excellent design concept of infinity optical system and module function, it can provide excellent optical performance and product system upgrade, realize the functions of simultaneous transmission and reflection, independent illumination, polarized observation and other functions. The product has the characteristics of beautiful appearance, convenient operation, clear image, etc. It is an ideal instrument for research in biology, metallurgy, mineralogy, precision engineering, electronics, etc.

2. Specification

Model	HL301-C
Optical system	Infinite chromatic aberration correction optical system	·
Observation tube	Trinocular, tilted 30˚, (built-in polarizer, switchable)	·
Eyepieces	Wide field WF10X / 22mm	·
Eyepieces	Large field of view WF10X / 22mm, with cross differentiation rule	O
Standard objective lens (Infinity plan achromatic objectives)	PL L5X / 0.12 WD26.1 mm	·
	PL L10X / 0.25 WD20.2mm	·
	PL L40X / 0.60 WD3.98 mm (spring)	·
	PL L 60X / 0.7 WD3.18 mm	·
Optional objective lens (Infinity plan achromatic objectives)	PL L20X / 0.40 WD8.80 mm	O
	PL L50X / 0.70 WD3.68 mm	O
	PL L 80X / 0.80 WD1.25 mm	O
	PL L100X / 0.85 WD0.40 mm	O
Converter	Five holes (inward ball positioning)	·
Focusing mechanism	Coarse and fine focus coaxial adjustment, fine motion grid value: 2μm, coarse and fine tension adjustment, with locking and limit device	·
Stage	Double-layer mechanical movable stage, size: 210mmX140mm, moving range: 63 * 50mm	·
Epi-illumination system	6V30W halogen lamp with adjustable brightness, equipped with yellow, blue and green color filters and frosted glass	·
Epi-illumination system	Built-in field diaphragm, aperture diaphragm, color filter conversion device, push-pull analyzer and polarizer	·
Transmission illumination system	Abbe condenser NA.1.25 can be moved up and down	·
Transmission illumination system	Built-in field-of-view light bar in collector lens, 6V30W halogen lamp, adjustable brightness	·

Note: "·" is standard configuration; "O" is optional
