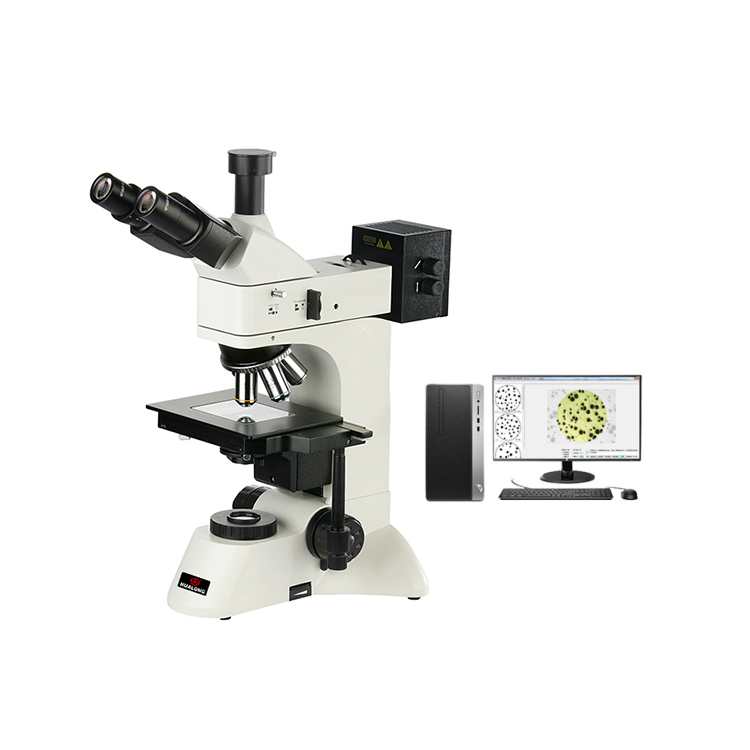

HL301-CW Medium-sized Upright Metallographic Microscope With Software & Camera

1. Application
HL301-CW transreflectance multifunctional metallographic microscope is suitable for the microscopic observation of opaque or transparent objects. The instrument configuration and transmitted illumination system, infinite far fall games long departure Ming achromatic telescope (without cover glass), large eyepiece and built-in polarization observation device, image is clear, better contrast, aesthetically pleasing, easy to operate etc, is biology, metallography, mineralogy, precision engineering, electronics, etc. The research of the ideal instrument. Suitable for use in schools, scientific research, factories and other departments.

2. Specification

Model	HL301-CW
Optical system	Infinite chromatic aberration correction optical system	·
Observation tube	Trinocular, tilted 30˚, (built-in polarizer, switchable)	·
Eyepieces	Wide field WF10X / 22mm	·
Eyepieces	Large field of view WF10X / 22mm, with cross differentiation rule	O
Standard objective lens (Infinity plan achromatic objectives)	PL L5X / 0.12 WD26.1 mm	·
	PL L10X / 0.25 WD20.2mm	·
	PL L40X / 0.60 WD3.98 mm (spring)	·
	PL L 60X / 0.7 WD3.18 mm	·
Optional objective lens (Infinity plan achromatic objectives)	PL L20X / 0.40 WD8.80 mm	O
	PL L50X / 0.70 WD3.68 mm	O
	PL L 80X / 0.80 WD1.25 mm	O
	PL L100X / 0.85 WD0.40 mm	O
Converter	Five holes (inward ball positioning)	·
Focusing mechanism	Coarse and fine focus coaxial adjustment, fine motion grid value: 2μm, coarse and fine tension adjustment, with locking and limit device	·
Stage	Double-layer mechanical movable stage, size: 210mmX140mm, moving range: 63 * 50mm	·
Epi-illumination system	6V30W halogen lamp with adjustable brightness, equipped with yellow, blue and green color filters and frosted glass	·
Epi-illumination system	Built-in field diaphragm, aperture diaphragm, color filter conversion device, push-pull analyzer and polarizer	·
Transmission illumination system	Abbe condenser NA.1.25 can be moved up and down	·
Transmission illumination system	Built-in field-of-view light bar in collector lens, 6V30W halogen lamp, adjustable brightness	·
Software supporting	FMIA2020 genuine metallographic analysis software	·
Camera device	Sony chip camera (3 million, 5 million, 6.3 million, 12 million, 16 million, etc.)
Camera device	0.65X, 1X camera receiver
Micrometer	High-precision micrometer (0.01mm grid value)

Note: "·" is standard configuration; "O" is optional
