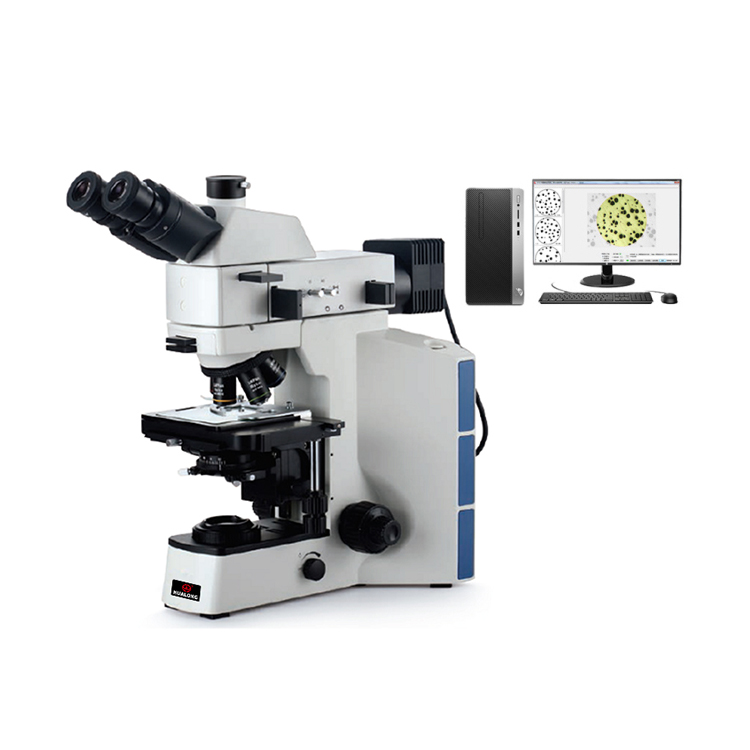

HL402-AW Medium-sized Trinocular Upright Metallographic Microscope With Software

1. Features
- An observation cylinder with the best comfortable Angle (30°) of the newborn bed can relieve the tension and fatigue of the user during a long working period, ensuring the best observation condition. Observe the scale on the cylinder, convenient for users to adjust the best pupil distance range.
- The falling illuminator uses a cora lighting system with FOV apertures, aperture apertures, and oblique lighting devices. Preset offset mirror, offset mirror and color filter slot.
- A single 5W LED warm-white lighting (3000-3300K) minimizes visual fatigue for observers, compared with similar LED lighting.
- The lathes and apertures adopt a drawbar device with adjustable center, which can flexibly adjust the size of the illumination range and effectively avoid the influence of stray light on the image.

2. Specification

The optical system	Infinite chromatic aberration correction optical system
Observe the head	30° tilt, infinite hinge three-way observation cylinder, pupil distance adjustment: 54mm~75mm, visual adjustment: ±5 diopter, two grade beam ratio R:T= 100:0 or 50:50
Eyepiece	High point large field eyepiece PL10X(Φ22mm)
Infinite flat field	Achromatic objective LMPL 5X / 0.15WD10.8mm
	WD12.2 LMPL 10 x / 0.30 mm
	LMPL WD4.00 20 x / 0.45 mm
	LMPL WD7.9 50 x / 0.55 mm
Objective lens converter	Internally positioned five hole converter
Focusing mechanism	Dual-purpose frame, low hand coarse micro coaxial focusing mechanism, coarse adjustment stroke 28mm, fine adjustment accuracy 0.002mm. With an adjustable tension device to prevent sliding and a random upper limit device. With platform position up and down adjustment mechanism, maximum sample height 28mm
Lighting system	Adaptive wide voltage 100V-240V_AC50/60Hz, reflectance lamp room, single high-power 5WLED, warm color, Cora lighting, with field of view and aperture stop, center adjustable, with oblique lighting device.
Objective table	Double layer mechanical mobile platform, low hand X and Y direction coaxial adjustment; Platform area 175X145mm, moving range: 76X42mm can be matched with anti-penetration dual-use glass carrier platform
Color filter	Yellow, IF550 color filter, LBD color filter, neutral color filter
Software	FMIA2021 genuine metallographic analysis software system, 12 million camera device, 0.5X adapter mirror interface, high-precision micrometer.
