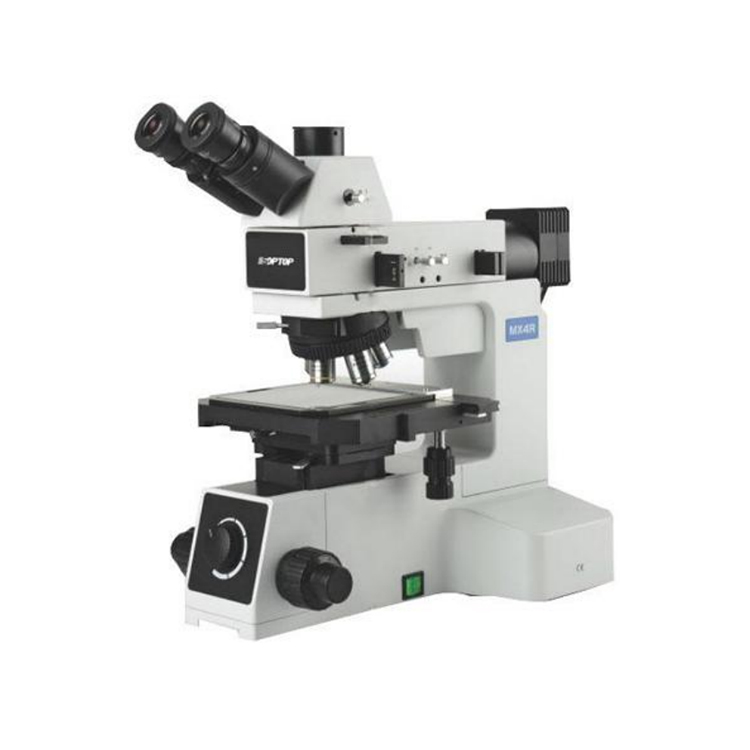

HL402-B Large Upright Metallographic Microscope

1. Application
HL402-B metallographic microscope is a trinocular upright metallographic microscope. The machine has a flexible system combination, excellent imaging performance and stable system structure. Each operating mechanism is designed according to ergonomics to minimize the operator's fatigue, and the modular design of components can freely combine system functions. The MX series is professionally used in the field of industrial inspection and metallographic analysis.

2. Specification

Specification		Model
Parts	Specification	HL402-B
Optional observation method	Brightfield/oblique illumination/polarized light/DIC/transmitted light	O
Optical system	Infinity Chromatic Aberration Correction Optical System	·
Observation tube	30° tilt, hinged trinocular observation tube, beam splitting ratio R:T=100:0 or 50:50	·
Eyepiece	High eye point large field plan eyepiece PL10X/22mm	·
	High eye point large field plan eyepiece PL10X/22mm (adjustable diopter, with micrometer)	O
	High eye point large field plan eyepiece PL15X/16mm	O
Infinity long distance plan achromatic objective	LMPL 5X /0.15 DIC WD10.8mm	·
	LMPL 10X/0.3 DIC WD12.2mm	·
	LMPL 20X/0.45 DIC WD4mm	·
	LMPL 50X/0.55 WD7.9mm	·
	LMPL 100X/0.80 WD2.1mm	O
Converter	5-Hole Tilt Converter with DIC Slot	·
Focusing mechanism	Coaxial coarse and fine adjustment, coarse adjustment stroke 33mm, fine adjustment accuracy 0.001mm, with coarse adjustment mechanism upper limit and elastic adjustment device. Built-in 100-240V wide voltage transformer, dual power output	·
Stage	4" double-layer mechanical mobile platform, platform area 230X215mm, travel 105x 105mm, with glass platform, right-hand X, Y mobile handwheel, with platform interface	·
Reflective Lighting System	With variable field diaphragm and aperture diaphragm, the center can be adjusted; with color filter slot and polarizer slot; with oblique illumination switch lever. Single high-power 5W LED, white, continuously adjustable light intensity.	·
Transillumination system	Single high-power 5W LED, white, continuously adjustable light intensity. N.A.0.5 condenser with variable aperture diaphragm	·
Other acessories	Polarizer board, fixed analyzer board, 360°rotating analyzer board	·
	Interference filter set for reflection	·
	DIC Differential Interference Component	O

Note: "·" is standard configuration; "O" is optional
