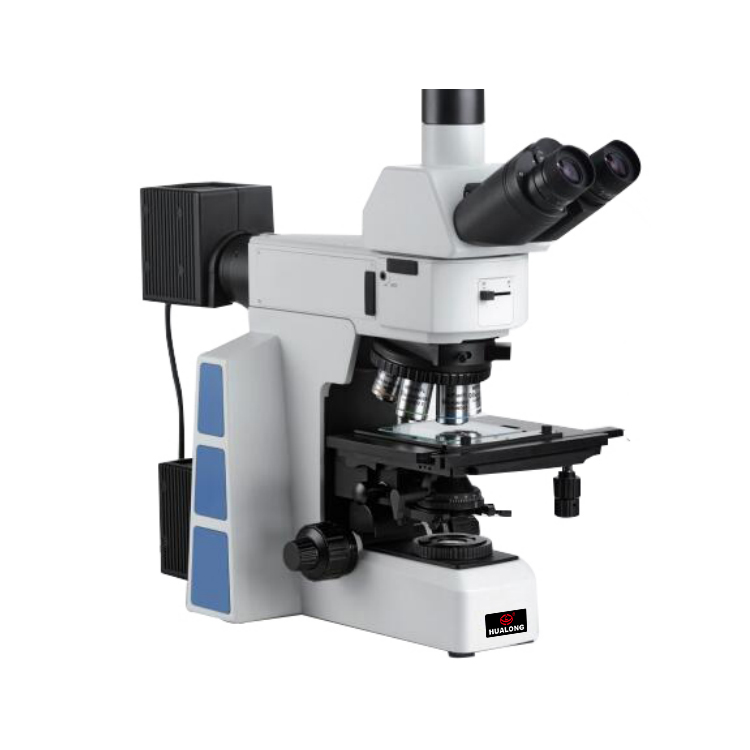

HL501M Research-grade Trinocular Upright Metallographic Microscope

1. Application
The HL501M research-grade metallographic microscope is a trinocular upright metallographic microscope, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend, and is committed to expanding a new pattern in the industrial field. It can provide various observation functions such as reflection bright field, reflection dark field, transmission bright field, transmission and reflection polarized light, reflection differential interference and so on.

2. Specification

Configuration		Model
Parts	Specification	HL501M
Lighting system	Infinity Chromatic Aberration Correction Optical System	·
Objective tube	30° tilt, erect image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, two-speed splitting ratio binocular: trinocular = 100:0 or 0:100	·
Objective tube	30° tilt, inverted image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, three-speed splitting ratio binocular: trinocular = 100:0 or 20:80 or 0:100	O
Eyepiece	High eye point wide field plan eyepieces PL10X/25mm, adjustable diopter	·
	High eye point large field plan eyepiece PL10X/25mm, adjustable diopter, with single scale cross reticle	O
	High eye point large field plan eyepiece PL10X/26.5mm, adjustable diopter, with single scale cross reticle	O
Bright and dark field half complex Achromatic Objectives	LMPLFL 5X /0.15 BD DIC WD13.5mm	·
	LMPLFL10X/0.30 BD DIC WD9.0mm	·
	LMPLFL20X/0.45 BD DIC WD2.5mm	·
	LMPLFL50X/0.80 BD WD1.0mm	·
	LMPLFL100X/0.90 BD WD1.0mm	O
Convener	Light and dark field 6-hole converter with DIC slot	·
Station	Transflective dual-purpose frame, low-hand position coarse and fine coaxial focusing mechanism. The coarse adjustment stroke is 25mm, and the fine adjustment accuracy is 0.001mm. With adjustable elastic device to prevent sliding and random upper limit device. Built-in 100-240V wide voltage system, dual power output, digital dimming, with light intensity setting and reset function, reflected/transmitted light switch, built-in transmitted light filter (LBD, ND6, ND25)	·
Stage	Right-hand 4-inch mechanical stage, travel 105mmx102mm, with Y-axis locking mechanism, with transmission system light barrier, with glass stage plate	·
Condenser	Swing-Out Achromatic Condenser (N.A.0.9)	·
Reflective Illuminator	Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, adjustable center; with light and dark field illumination switching device; with color filter slot, with polarizer/analyzer slot	·
Light room	12V100W halogen lamp room, common for transmission and reflection, pre-determined center	·
Other accessories	Polarizer board, fixed analyzer board, 360°rotating analyzer board	·
	Interference filter set for reflection	·
	DIC Differential Interference Component	O

Note: "·" is standard configuration; "O" is optional
